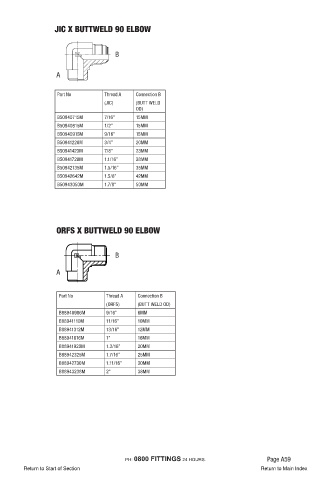

Page 63 - Fluid Fitting 2018_extended

JIC X BUTTWELD 90 ELBOW

B

A

Part No Thread A Connection B
(JIC) (BUTT WELD
OD)
B50940715M 7/16” 15MM
B50940815M 1/2” 15MM
B50940915M 9/16” 15MM
B50941220M 3/4” 20MM
B50941423M 7/8” 23MM
B50941728M 1.1/16” 28MM
B50942135M 1.5/16” 35MM
B50942642M 1.5/8” 42MM
B50943050M 1.7/8” 50MM

ORFS X BUTTWELD 90 ELBOW

B

A

Part No Thread A Connection B
(ORFS) (BUTT WELD OD)
B88940906M 9/16” 6MM
B88941110M 11/16” 10MM
B88941312M 13/16” 12MM
B88941616M 1” 16MM
B88941920M 1.3/16” 20MM
B88942325M 1.7/16” 25MM
B88942730M 1.11/16” 30MM
B88943238M 2” 38MM
