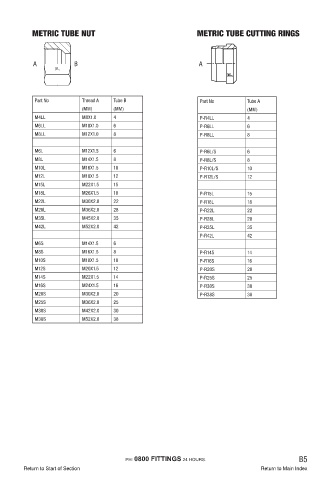

Page 71 - Fluid Fitting 2018_extended

METRIC TUBE NUT METRIC TUBE CUTTING RINGS

A B A

Part No Thread A Tube B Part No Tube A
(MM) (MM) (MM)
M4LL M8X1.0 4 P-R4LL 4
M6LL M10X1.0 6 P-R6LL 6
M8LL M12X1.0 8 P-R8LL 8

M6L M12X1.5 6 P-R6L/S 6
M8L M14X1.5 8 P-R8L/S 8
M10L M16X1.5 10 P-R10L/S 10
M12L M18X1.5 12 P-R12L/S 12
M15L M22X1.5 15
M18L M26X1.5 18 P-R15L 15
M22L M30X2.0 22 P-R18L 18
M28L M36X2.0 28 P-R22L 22
M35L M45X2.0 35 P-R28L 28
M42L M52X2.0 42 P-R35L 35
P-R42L 42
M6S M14X1.5 6
M8S M16X1.5 8 P-R14S 14
M10S M18X1.5 10 P-R16S 16
M12S M20X1.5 12 P-R20S 20
M14S M22X1.5 14 P-R25S 25
M16S M24X1.5 16 P-R30S 30
M20S M30X2.0 20 P-R38S 38
M25S M36X2.0 25
M30S M42X2.0 30
M38S M52X2.0 38

PH: 0800 FITTINGS 24 HOURS. B5
