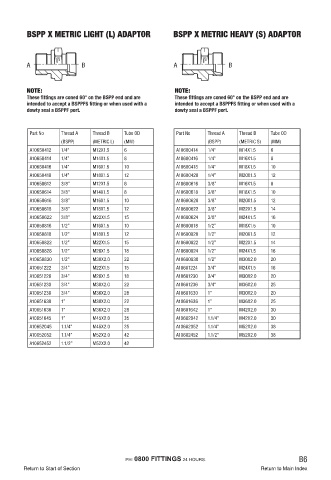

Page 72 - Fluid Fitting 2018_extended

BSPP X METRIC LIGHT (L) ADAPTOR BSPP X METRIC HEAVY (S) ADAPTOR

A B A B

NOTE: NOTE:
These fittings are coned 60° on the BSPP end and are These fittings are coned 60° on the BSPP end and are
intended to accept a BSPPFS fitting or when used with a intended to accept a BSPPFS fitting or when used with a
dowty seal a BSPPF port. dowty seal a BSPPF port.

Part No Thread A Thread B Tube OD Part No Thread A Thread B Tube OD
(BSPP) (METRIC L) (MM) (BSPP) (METRIC S) (MM)
A10650412 1/4” M12X1.5 6 A10680414 1/4” M14X1.5 6
A10650414 1/4” M14X1.5 8 A10680416 1/4” M16X1.5 8
A10650416 1/4” M16X1.5 10 A10680418 1/4” M18X1.5 10
A10650418 1/4” M18X1.5 12 A10680420 1/4” M20X1.5 12
A10650612 3/8” M12X1.5 6 A10680616 3/8” M16X1.5 8
A10650614 3/8” M14X1.5 8 A10680618 3/8” M18X1.5 10
A10650616 3/8” M16X1.5 10 A10680620 3/8” M20X1.5 12
A10650618 3/8” M18X1.5 12 A10680622 3/8” M22X1.5 14
A10650622 3/8” M22X1.5 15 A10680624 3/8” M24X1.5 16
A10650816 1/2” M16X1.5 10 A10680818 1/2” M18X1.5 10
A10650818 1/2” M18X1.5 12 A10680820 1/2” M20X1.5 12
A10650822 1/2” M22X1.5 15 A10680822 1/2” M22X1.5 14
A10650826 1/2” M26X1.5 18 A10680824 1/2” M24X1.5 16
A10650830 1/2” M30X2.0 22 A10680830 1/2” M30X2.0 20
A10651222 3/4” M22X1.5 15 A10681224 3/4” M24X1.5 16
A10651226 3/4” M26X1.5 18 A10681230 3/4” M30X2.0 20
A10651230 3/4” M30X2.0 22 A10681236 3/4” M36X2.0 25
A10651236 3/4” M36X2.0 28 A10681630 1” M30X2.0 20
A10651630 1” M30X2.0 22 A10681636 1” M36X2.0 25
A10651636 1” M36X2.0 28 A10681642 1” M42X2.0 30
A10651645 1” M45X2.0 35 A10682042 1.1/4” M42X2.0 30
A10652045 1.1/4” M45X2.0 35 A10682052 1.1/4” M52X2.0 38
A10652052 1.1/4” M52X2.0 42 A10682452 1.1/2” M52X2.0 38
A10652452 1.1/2” M52X2.0 42

PH: 0800 FITTINGS 24 HOURS. B6
