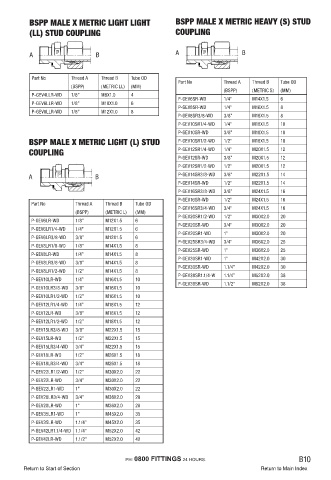

Page 76 - Fluid Fitting 2018_extended

BSPP MALE X METRIC LIGHT LIGHT BSPP MALE X METRIC HEAVY (S) STUD

(LL) STUD COUPLING COUPLING

A B A B

Part No Thread A Thread B Tube OD
Part No Thread A Thread B Tube OD
(BSPP) (METRIC LL) (MM)
(BSPP) (METRIC S) (MM)
P-GEV4LLR-WD 1/8” M8X1.0 4
P-GEV6SR-WD 1/4” M14X1.5 6
P-GEV6LLR-WD 1/8” M10X1.0 6
P-GEV8SR-WD 1/4” M16X1.5 8
P-GEV8LLR-WD 1/8” M12X1.0 8
P-GEV8SR3/8-WD 3/8” M16X1.5 8
P-GEV10SR1/4-WD 1/4” M18X1.5 10
P-GEV10SR-WD 3/8” M18X1.5 10
BSPP MALE X METRIC LIGHT (L) STUD P-GEV10SR1/2-WD 1/2” M18X1.5 10

COUPLING P-GEV12SR1/4-WD 1/4” M20X1.5 12
P-GEV12SR-WD 3/8” M20X1.5 12
P-GEV12SR1/2-WD 1/2” M20X1.5 12
A B P-GEV14SR3/8-WD 3/8” M22X1.5 14
P-GEV14SR-WD 1/2” M22X1.5 14
P-GEV16SR3/8-WD 3/8” M24X1.5 16
P-GEV16SR-WD 1/2” M24X1.5 16
Part No Thread A Thread B Tube OD
P-GEV16SR3/4-WD 3/4” M24X1.5 16
(BSPP) (METRIC L) (MM)
P-GEV20SR1/2-WD 1/2” M30X2.0 20
P-GEV6LR-WD 1/8” M12X1.5 6
P-GEV20SR-WD 3/4” M30X2.0 20
P-GEV6LR1/4-WD 1/4” M12X1.5 6
P-GEV20SR1-WD 1” M30X2.0 20
P-GEV6LR3/8-WD 3/8” M12X1.5 6
P-GEV25SR3/4-WD 3/4” M36X2.0 25
P-GEV8LR1/8-WD 1/8” M14X1.5 8
P-GEV25SR-WD 1” M36X2.0 25
P-GEV8LR-WD 1/4” M14X1.5 8
P-GEV30SR1-WD 1” M42X2.0 30
P-GEV8LR3/8-WD 3/8” M14X1.5 8
P-GEV30SR-WD 1.1/4” M42X2.0 30
P-GEV8LR1/2-WD 1/2” M14X1.5 8
P-GEV38SR1.1/4-W 1.1/4” M52X2.0 38
P-GEV10LR-WD 1/4” M16X1.5 10
P-GEV38SR-WD 1.1/2” M52X2.0 38
P-GEV10LR3/8-WD 3/8” M16X1.5 10
P-GEV10LR1/2-WD 1/2” M16X1.5 10
P-GEV12LR1/4-WD 1/4” M18X1.5 12
P-GEV12LR-WD 3/8” M18X1.5 12
P-GEV12LR1/2-WD 1/2” M18X1.5 12
P-GEV15LR3/8-WD 3/8” M22X1.5 15
P-GEV15LR-WD 1/2” M22X1.5 15
P-GEV15LR3/4-WD 3/4” M22X1.5 15
P-GEV18LR-WD 1/2” M26X1.5 18
P-GEV18LR3/4-WD 3/4” M26X1.5 18
P-GEV22LR1/2-WD 1/2” M30X2.0 22
P-GEV22LR-WD 3/4” M30X2.0 22
P-GEV22LR1-WD 1” M30X2.0 22
P-GEV28LR3/4-WD 3/4” M36X2.0 28
P-GEV28LR-WD 1” M36X2.0 28
P-GEV35LR1-WD 1” M45X2.0 35
P-GEV35LR-WD 1.1/4” M45X2.0 35
P-GEV42LR1.1/4-WD 1.1/4” M52X2.0 42
P-GEV42LR-WD 1.1/2” M52X2.0 42
