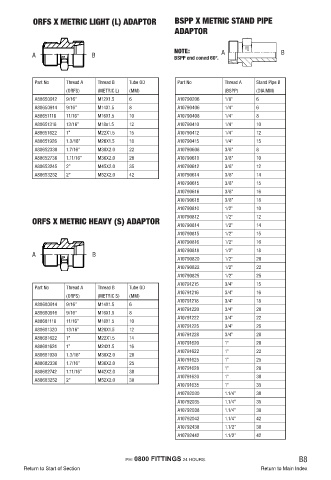

Page 74 - Fluid Fitting 2018_extended

ORFS X METRIC LIGHT (L) ADAPTOR BSPP X METRIC STAND PIPE
ADAPTOR

NOTE: A B
A B BSPP end coned 60°.

Part No Thread A Thread B Tube OD Part No Thread A Stand Pipe B
(ORFS) (METRIC L) (MM) (BSPP) (DIA MM)
A88650912 9/16” M12X1.5 6 A10790206 1/8” 6
A88650914 9/16” M14X1.5 8 A10790406 1/4” 6
A88651116 11/16” M16X1.5 10 A10790408 1/4” 8
A88651318 13/16” M18x1.5 12 A10790410 1/4” 10
A88651622 1” M22X1.5 15 A10790412 1/4” 12
A88651926 1.3/16” M26X1.5 18 A10790415 1/4” 15
A88652330 1.7/16” M30X2.0 22 A10790608 3/8” 8
A88652736 1.11/16” M36X2.0 28 A10790610 3/8” 10
A88653245 2” M45X2.0 35 A10790612 3/8” 12
A88653252 2” M52X2.0 42 A10790614 3/8” 14
A10790615 3/8” 15
A10790616 3/8” 16
A10790618 3/8” 18
A10790810 1/2” 10

ORFS X METRIC HEAVY (S) ADAPTOR A10790812 1/2” 12
A10790814 1/2” 14
A10790815 1/2” 15
A10790816 1/2” 16
A10790818 1/2” 18
A B
A10790820 1/2” 20
A10790822 1/2” 22
A10790825 1/2” 25
A10791215 3/4” 15
Part No Thread A Thread B Tube OD
A10791216 3/4” 16
(ORFS) (METRIC S) (MM)
A10791218 3/4” 18
A88680914 9/16” M14X1.5 6
A10791220 3/4” 20
A88680916 9/16” M16X1.5 8
A10791222 3/4” 22
A88681118 11/16” M18X1.5 10
A10791225 3/4” 25
A88681320 13/16” M20X1.5 12
A10791228 3/4” 28
A88681622 1” M22X1.5 14
A10791620 1” 20
A88681624 1” M24X1.5 16
A10791622 1” 22
A88681930 1.3/16” M30X2.0 20
A10791625 1” 25
A88682336 1.7/16” M36X2.0 25
A10791628 1” 28
A88682742 1.11/16” M42X2.0 30
A10791630 1” 30
A88683252 2” M52X2.0 38
A10791635 1” 35
A10792030 1.1/4” 30
A10792035 1.1/4” 35
A10792038 1.1/4” 38
A10792042 1.1/4” 42
A10792438 1.1/2” 38
A10792442 1.1/2” 42
