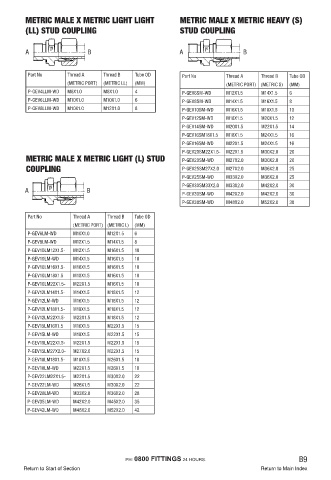

Page 75 - Fluid Fitting 2018_extended

METRIC MALE X METRIC LIGHT LIGHT METRIC MALE X METRIC HEAVY (S)
(LL) STUD COUPLING STUD COUPLING

A B A B

Part No Thread A Thread B Tube OD Part No Thread A Thread B Tube OD
(METRIC PORT) (METRIC LL) (MM) (METRIC PORT) (METRIC S) (MM)
P-GEV4LLM-WD M8X1.0 M8X1.0 4 P-GEV6SM-WD M12X1.5 M14X1.5 6
P-GEV6LLM-WD M10X1.0 M10X1.0 6 P-GEV8SM-WD M14X1.5 M16X1.5 8
P-GEV8LLM-WD M10X1.0 M12X1.0 8 P-GEV10SM-WD M16X1.5 M18X1.5 10
P-GEV12SM-WD M18X1.5 M20X1.5 12
P-GEV14SM-WD M20X1.5 M22X1.5 14
P-GEV16SM18X1.5 M18X1.5 M24X1.5 16
P-GEV16SM-WD M22X1.5 M24X1.5 16
P-GEV20SM22X1.5- M22X1.5 M30X2.0 20
METRIC MALE X METRIC LIGHT (L) STUD P-GEV20SM-WD M27X2.0 M30X2.0 20
COUPLING P-GEV25SM27X2.0 M27X2.0 M36X2.0 25

P-GEV25SM-WD M33X2.0 M36X2.0 25
P-GEV30SM33X2.0 M33X2.0 M42X2.0 30
A B
P-GEV30SM-WD M42X2.0 M42X2.0 30
P-GEV38SM-WD M48X2.0 M52X2.0 38

Part No Thread A Thread B Tube OD
(METRIC PORT) (METRIC L) (MM)
P-GEV6LM-WD M10X1.0 M12X1.5 6
P-GEV8LM-WD M12X1.5 M14X1.5 8
P-GEV10LM12X1.5- M12X1.5 M16X1.5 10
P-GEV10LM-WD M14X1.5 M16X1.5 10
P-GEV10LM16X1.5- M16X1.5 M16X1.5 10
P-GEV10LM18X1.5 M18X1.5 M16X1.5 10
P-GEV10LM22X1.5- M22X1.5 M16X1.5 10
P-GEV12LM14X1.5- M14X1.5 M18X1.5 12
P-GEV12LM-WD M16X1.5 M18X1.5 12
P-GEV12LM18X1.5- M18X1.5 M18X1.5 12
P-GEV12LM22X1.5- M22X1.5 M18X1.5 12
P-GEV15LM16X1.5 M16X1.5 M22X1.5 15
P-GEV15LM-WD M18X1.5 M22X1.5 15
P-GEV15LM22X1.5- M22X1.5 M22X1.5 15
P-GEV15LM27X2.0- M27X2.0 M22X1.5 15
P-GEV18LM18X1.5- M18X1.5 M26X1.5 18
P-GEV18LM-WD M22X1.5 M26X1.5 18
P-GEV22LM22X1.5- M22X1.5 M30X2.0 22
P-GEV22LM-WD M26X1.5 M30X2.0 22
P-GEV28LM-WD M33X2.0 M36X2.0 28
P-GEV35LM-WD M42X2.0 M45X2.0 35
P-GEV42LM-WD M48X2.0 M52X2.0 42
