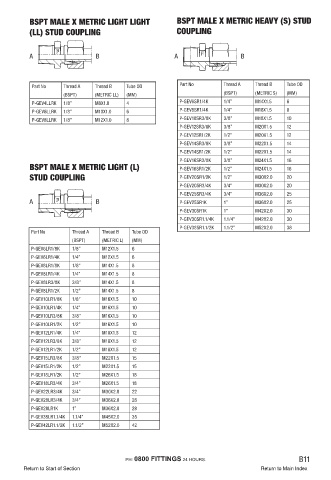

Page 77 - Fluid Fitting 2018_extended

BSPT MALE X METRIC LIGHT LIGHT BSPT MALE X METRIC HEAVY (S) STUD
(LL) STUD COUPLING COUPLING

A B A B

Part No Thread A Thread B Tube OD Part No Thread A Thread B Tube OD
(BSPT) (METRIC LL) (MM) (BSPT) (METRIC S) (MM)
P-GEV4LLRK 1/8” M8X1.0 4 P-GEV6SR1/4K 1/4” M14X1.5 6
P-GEV6LLRK 1/8” M10X1.0 6 P-GEV8SR1/4K 1/4” M16X1.5 8
P-GEV8LLRK 1/8” M12X1.0 8 P-GEV10SR3/8K 3/8” M18X1.5 10
P-GEV12SR3/8K 3/8” M20X1.5 12
P-GEV12SR1/2K 1/2” M20X1.5 12
P-GEV14SR3/8K 3/8” M22X1.5 14
P-GEV14SR1/2K 1/2” M22X1.5 14
P-GEV16SR3/8K 3/8” M24X1.5 16
BSPT MALE X METRIC LIGHT (L) P-GEV16SR1/2K 1/2” M24X1.5 16
STUD COUPLING P-GEV20SR1/2K 1/2” M30X2.0 20
P-GEV20SR3/4K 3/4” M30X2.0 20
P-GEV25SR3/4K 3/4” M36X2.0 25
A B P-GEV25SR1K 1” M36X2.0 25
P-GEV30SR1K 1” M42X2.0 30
P-GEV30SR1.1/4K 1.1/4” M42X2.0 30
P-GEV38SR1.1/2K 1.1/2” M52X2.0 38
Part No Thread A Thread B Tube OD
(BSPT) (METRIC L) (MM)
P-GEV6LR1/8K 1/8” M12X1.5 6
P-GEV6LR1/4K 1/4” M12X1.5 6
P-GEV8LR1/8K 1/8” M14X1.5 8
P-GEV8LR1/4K 1/4” M14X1.5 8
P-GEV8LR3/8K 3/8” M14X1.5 8
P-GEV8LR1/2K 1/2” M14X1.5 8
P-GEV10LR1/8K 1/8” M16X1.5 10
P-GEV10LR1/4K 1/4” M16X1.5 10
P-GEV10LR3/8K 3/8” M16X1.5 10
P-GEV10LR1/2K 1/2” M16X1.5 10
P-GEV12LR1/4K 1/4” M18X1.5 12
P-GEV12LR3/8K 3/8” M18X1.5 12
P-GEV12LR1/2K 1/2” M18X1.5 12
P-GEV15LR3/8K 3/8” M22X1.5 15
P-GEV15LR1/2K 1/2” M22X1.5 15
P-GEV18LR1/2K 1/2” M26X1.5 18
P-GEV18LR3/4K 3/4” M26X1.5 18
P-GEV22LR3/4K 3/4” M30X2.0 22
P-GEV28LR3/4K 3/4” M36X2.0 28
P-GEV28LR1K 1” M36X2.0 28
P-GEV35LR1.1/4K 1.1/4” M45X2.0 35
P-GEV42LR1.1/2K 1.1/2” M52X2.0 42

PH: 0800 FITTINGS 24 HOURS. B11
