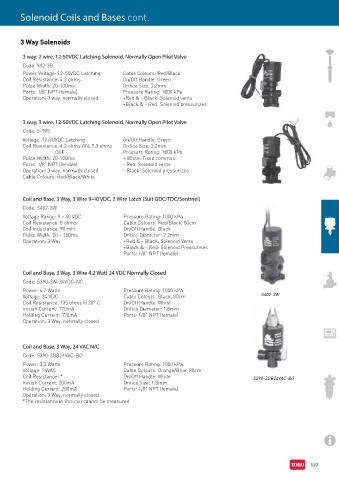

Page 191 - Toro Irrigation Product Catalogue August 2020

Solenoid Coils and Bases cont.

3 Way Solenoids

3 way, 2 wire, 12-50VDC Latching Solenoid, Normally Open Pilot Valve
Code: 982-3B
Power Voltage: 12-50VDC Latching Cable Colours: Red/Black
Coil Resistance: 4.2 ohms On/Off Handle: Green
Pulse Width: 20-100ms Orifice Size: 2.2mm
Ports: 1/8” NPT (female) Pressure Rating: 1000 kPa
Operation: 3 way, normally closed +Red & - Black: Solenoid vents
+Black & - Red: Solenoid pressurizes

3 way, 3 wire, 12-50VDC Latching Solenoid, Normally Open Pilot Valve
Code: S-985
Voltage: 12-50VDC Latching On/Off Handle: Green
Coil Resistance: 4.2 ohms ON, 7.5 ohms Orifice Size: 2.2mm
OFF Pressure Rating: 1000 kPa
Pulse Width: 20-100ms + White: Fixed common
Ports: 1/8” NPT (female) - Red: Solenoid vents
Operation: 3 way, normally closed - Black: Solenoid pressurizes
Cable Colours: Red/Black/White

Coil and Base, 3 Way, 3 Wire 9-40 VDC, 2 Wire Latch (Suit GDC/TDC/Sentinel)
Code: S402-3W
Voltage Range: 9 – 40 VDC Pressure Rating: 1000 kPa
Coil Resistance: 8 ohms Cable Colours: Red/Black, 80cm
Coil Inductance: 90 mH On/Off Handle: Black
Pulse Width: 20 – 100ms Orifice Diameter: 2.2mm
Operation: 3 Way +Red & - Black: Solenoid Vents
+Black & - Red: Solenoid Pressurises
Ports: 1/8” NPT (female)

Coil and Base, 3 Way, 3 Wire 4.2 Watt 24 VDC Normally Closed
Code: S390-3W-24VDC-NC
Power: 4.2 Watts Pressure Rating: 1000 kPa
Voltage: 24 VDC Cable Colours: Black, 80cm S402-3W
Coil Resistance: 135 ohms @ 20° C On/Off Handle: White
Inrush Current: 170mA Orifice Diameter: 1.8mm
Holding Current: 170mA Ports: 1/8” NPT (female)
Operation: 3 Way, normally closed

Coil and Base, 3 Way, 24 VAC N/C
Code: S390-3DB24VAC-BO
Power: 3.5 Watts Pressure Rating: 1000 kPa
Voltage: 24VAC Cable Colours: Orange/Blue, 80cm
Coil Resistance: * On/Off Handle: White S390-3DB24VAC-BO
Inrush Current: 200mA Orifice Size: 1.8mm
Holding Current: 200mA Ports: 1/8” NPT (female)
Operation: 3 Way, normally closed
*The resistance in this coil cannot be measured
