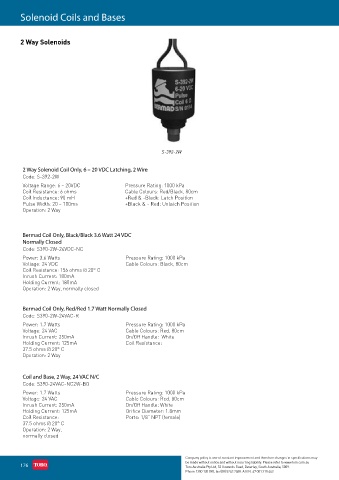

Page 190 - Toro Irrigation Product Catalogue August 2020
P. 190
Solenoid Coils and Bases
2 Way Solenoids
S-392-2W
2 Way Solenoid Coil Only, 6 – 20 VDC Latching, 2 Wire
Code: S-392-2W
Voltage Range: 6 – 20VDC Pressure Rating: 1000 kPa
Coil Resistance: 6 ohms Cable Colours: Red/Black, 80cm
Coil Inductance: 90 mH +Red & -Black: Latch Position
Pulse Width: 20 – 100ms +Black & - Red: Unlatch Position
Operation: 2 Way
Bermad Coil Only, Black/Black 3.6 Watt 24 VDC
Normally Closed
Code: S390-2W-24VDC-NC
Power: 3.6 Watts Pressure Rating: 1000 kPa
Voltage: 24 VDC Cable Colours: Black, 80cm
Coil Resistance: 156 ohms @ 20° C
Inrush Current: 180mA
Holding Current: 180mA
Operation: 2 Way, normally closed
Bermad Coil Only, Red/Red 1.7 Watt Normally Closed
Code: S390-2W-24VAC-R
Power: 1.7 Watts Pressure Rating: 1000 kPa
Voltage: 24 VAC Cable Colours: Red, 80cm
Inrush Current: 250mA On/Off Handle: White
Holding Current: 125mA Coil Resistance:
37.5 ohms @ 20° C
Operation: 2 Way
Coil and Base, 2 Way, 24 VAC N/C
Code: S390-24VAC-NC2W-BO
Power: 1.7 Watts Pressure Rating: 1000 kPa
Voltage: 24 VAC Cable Colours: Red, 80cm
Inrush Current: 250mA On/Off Handle: White
Holding Current: 125mA Orifice Diameter: 1.8mm
Coil Resistance: Ports: 1/8” NPT (female)
37.5 ohms @ 20° C
Operation: 2 Way,
normally closed
