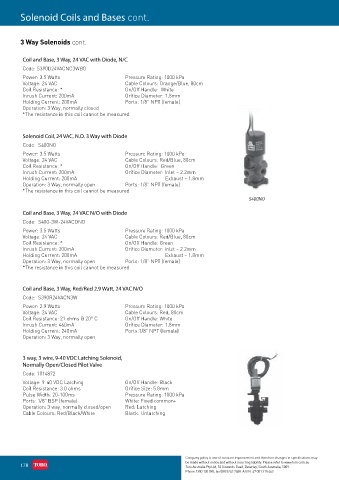

Solenoid Coils and Bases cont.




        3 Way Solenoids cont.


         Coil and Base, 3 Way, 24 VAC with Diode, N/C
         Code: S390D24VACNC3WBO
         Power: 3.5 Watts                    Pressure Rating: 1000 kPa
         Voltage: 24 VAC                     Cable Colours: Orange/Blue, 80cm
         Coil Resistance: *                  On/Off Handle:  White
         Inrush Current: 200mA               Orifice Diameter: 1.8mm
         Holding Current: 200mA              Ports: 1/8” NPT (female)
         Operation: 3 Way, normally closed
         *The resistance in this coil cannot be measured



         Solenoid Coil, 24 VAC, N.O. 3 Way with Diode
         Code:  S400NO
         Power: 3.5 Watts                    Pressure Rating: 1000 kPa
         Voltage: 24 VAC                     Cable Colours: Red/Blue, 80cm
         Coil Resistance: *                  On/Off Handle:  Green
         Inrush Current: 200mA               Orifice Diameter: Inlet – 2.2mm
         Holding Current: 200mA                             Exhaust – 1.8mm
         Operation: 3 Way, normally open     Ports: 1/8” NPT (female)
         *The resistance in this coil cannot be measured
                                                                                        S400NO

         Coil and Base, 3 Way, 24 VAC N/O with Diode
         Code:  S400-3W-24VACDNO
         Power: 3.5 Watts                    Pressure Rating: 1000 kPa
         Voltage: 24 VAC                     Cable Colours: Red/Blue, 80cm
         Coil Resistance: *                  On/Off Handle: Green
         Inrush Current: 200mA               Orifice Diameter: Inlet – 2.2mm
         Holding Current: 200mA                             Exhaust – 1.8mm
         Operation: 3 Way, normally open     Ports: 1/8” NPT (female)
         *The resistance in this coil cannot be measured


         Coil and Base, 3 Way, Red/Red 2.9 Watt, 24 VAC N/O
         Code:  S390R24VACN3W
         Power: 2.9 Watts                    Pressure Rating: 1000 kPa
         Voltage: 24 VAC                     Cable Colours: Red, 80cm
         Coil Resistance: 21 ohms @ 20° C    On/Off Handle: White
         Inrush Current: 460mA               Orifice Diameter: 1.8mm
         Holding Current: 240mA              Ports:1/8” NPT (female)
         Operation: 3 Way, normally open



         3 way, 3 wire, 9-40 VDC Latching Solenoid,
         Normally Open/Closed Pilot Valve
         Code: 1014872
         Voltage: 9-40 VDC Latching          On/Off Handle: Black
         Coil Resistance: 3.0 ohms           Orifice Size: 5.8mm
         Pulse Width: 20-100ms               Pressure Rating: 1000 kPa
         Ports: 1/8” BSP (female)            White: Fixed common+
         Operation: 3 way, normally closed/open   Red: Latching
         Cable Colours: Red/Black/White                Black: Unlatching
