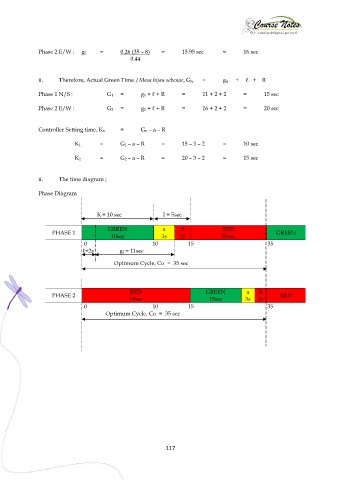

Page 124 - Lecture Notes DCC3113

Phase 2 E/W : g2 = 0.26 (35 – 8) = 15.95 sec ≈ 16 sec
0.44

ii. Therefore, Actual Green Time /Masa hijau sebenar, Gn = gn + ℓ + R

Phase 1 N/S : G1 = g1 + ℓ + R = 11 + 2 + 2 = 15 sec

Phase 2 E/W : G2 = g2 + ℓ + R = 16 + 2 + 2 = 20 sec

Controller Setting time, Kn = Gn – a – R

K1 = G1 – a – R = 15 – 3 – 2 = 10 sec

K2 = G2 – a – R = 20 – 3 – 2 = 15 sec

ii. The time diagram ;

Phase Diagram

K = 10 sec I = 5sec

GREEN a R RED
PHASE 1 GREEN
10sec 3s 2s 20sec
0 10 15 35
ℓ=2s g1 = 11sec

Optimum Cycle, Co = 35 sec

RED GREEN a R
PHASE 2 RED
15sec 15sec 3s 2s
0 10 15 35
Optimum Cycle, Co = 35 sec
