Maintenance

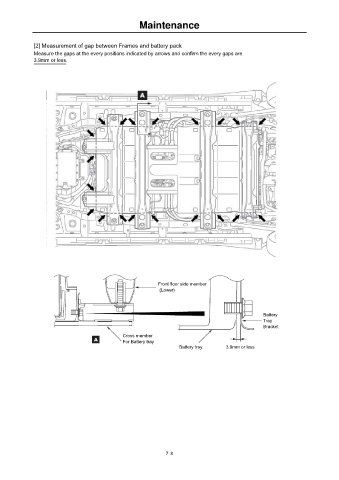

[2] Measurement of gap between Frames and battery pack
Measure the gaps at the every positions indicated by arrows and confirm the every gaps are
3.9mm or less.
Front floor side member
(Lower)
Battery
Tray
Bracket
Cross member
For Battery tray
Battery tray 3.9mm or less
