Maintenance

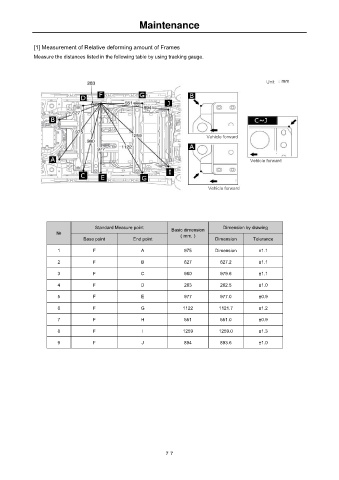

[1] Measurement of Relative deforming amount of Frames
Measure the distances listed in the following table by using tracking gauge.
Unit
Vehicle forward
Vehicle forward
Vehicle forward
Standard Measure point Basic dimension Dimension by drawing
№ （mm.）
Base point End point Dimension Tolerance
1 F A 975 Dimension ±1.1
2 F B 627 627.2 ±1.1
3 F C 980 979.6 ±1.1
4 Ｆ D 263 262.5 ±1.0
5 Ｆ E 977 977.0 ±0.9
6 Ｆ G 1122 1121.7 ±1.2
7 Ｆ H 551 551.0 ±0.9
8 Ｆ I 1259 1259.0 ±1.3
9 Ｆ J 894 893.6 ±1.0
７７
