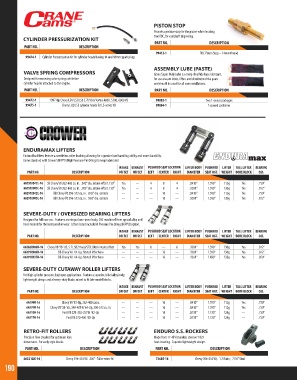

Page 190 - 2018 Master Catalog

PISTON STOP
Provide a positive stop for the piston when locating
true TDC, for camshaft degreeing.
CYLINDER PRESSURIZATION KIT
PART NO. DESCRIPTION
PART NO. DESCRIPTION
99412-1 TDC Piston Stop -- 14mm thread
99474-1 Cylinder Pressurization Kit for cylinder heads having 14 and 18mm spark plugs

ASSEMBLY LUBE (PASTE)
VALVE SPRING COMPRESSORS Crane Super Moly Lube is a moly-disulfide base lubricant,
Designed for removing valve springs while the for use on cam lobes, lifters and distributor drive gears
cylinder head is attached to the engine. and should be used for all cam installations.
PART NO. DESCRIPTION PART NO. DESCRIPTION

99472-1 1997-Up Chevy LS1/LS2/LS6 5.7L V8 & Vortec 4800, 5300, 6000 V8 99002-1 Two 1-ounce packages
99475-1 Chevy L92/LS3 cylinder heads for LS-series V8 99004-1 1-pound container

ENDURAMAX LIFTERS
EnduraMax lifters feature a needleless roller bushing allowing for a greater load handling ability and more durability.
Come standard with Crower’s HIPPO (High Pressure Pin Oiling) to keep lubricated.
INTAKE EXHAUST PUSHROD SEAT LOCATION LIFTER BODY PUSHROD LIFTER TALL LIFTER BEARING
PART NO. DESCRIPTION OFFSET OFFSET LEFT CENTER RIGHT DIAMETER SEAT HGT. WEIGHT BORE BLOCK O.D.

66292X842E-16 SB Chevy V8 262-400 cu. in. .842” dia. intake offset .150” Yes --- 4 8 4 .8415” 1.590” 112g Yes .750”
66292X903E-16 SB Chevy V8 262-400 cu. in. .903” dia. intake offset .150” Yes --- 4 8 4 .9031” 1.590” 130g Yes .812”
66291X842E-16 BB Chevy V8 396-572 cu. in. .842” dia. centers --- --- --- 16 --- .8415” 1.590” 112g Yes .750”
66291X903E-16 BB Chevy V8 396-572 cu. in. .903” dia. centers --- --- --- 16 --- .9031” 1.590” 130g Yes .812”

SEVERE-DUTY / OVERSIZED BEARING LIFTERS
Designed for full race use. Features an integral one-piece body, CNC machined from special alloy and
heat-treated for the best possible wear. Lifters listed include Hi Pressure Pin Oiling (HIPPO) option.
INTAKE EXHAUST PUSHROD SEAT LOCATION LIFTER BODY PUSHROD LIFTER TALL LIFTER BEARING
PART NO. DESCRIPTION OFFSET OFFSET LEFT CENTER RIGHT DIAMETER SEAT HGT. WEIGHT BORE BLOCK O.D.

66282X903H-16 Chevy V8 ‘98-’05, 5.7L SB2 Head/STD. Block intake offset Yes Yes 8 --- 8 .9031” 1.590” 130g Yes .812”
66291X903H-16 BB Chevy V8 ‘64-Up, fits tall lifter bore --- --- --- 16 --- .9031” 1.590” 130g Yes .812”
66291X937H-16 BB Chevy V8 ‘64-Up, fits tall lifter bore --- --- --- 16 --- .9361” 1.430” 133g Yes .850”
SEVERE-DUTY CUTAWAY ROLLER LIFTERS
For high cylinder pressure, high rpm applications. Feature a superior, billet alloy body,
lightweight design and a heavy-duty blade, raised to fit late model blocks.
INTAKE EXHAUST PUSHROD SEAT LOCATION LIFTER BODY PUSHROD LIFTER TALL LIFTER BEARING
PART NO. DESCRIPTION OFFSET OFFSET LEFT CENTER RIGHT DIAMETER SEAT HGT. WEIGHT BORE BLOCK O.D.

66290H-16 Chevy V8 ‘55-Up, 262-400 cu.in. --- --- --- 16 --- .8415” 1.590” 112g Yes .750”
66291H-16 Chevy V8 ‘58-’65, 348-409 & ‘64-Up, 396-572 cu. in. --- --- --- 16 --- .8415” 1.590” 112g Yes .750”
66215H-16 Ford V8 221-302-351W ‘62-Up --- --- --- 16 --- .8731” 1.730” 126g --- .750”
66217H-16 Ford V8 370-460 ‘68-Up --- --- --- 16 --- .8731” 1.730” 126g --- .750”

RETRO-FIT ROLLERS ENDURO S.S. ROCKERS
Precision flow checked for optimum leak Made from 17-4PH stainless steel w/ 1025
down rates. For early style blocks. heat-treating. Superior lightweight design.
PART NO. DESCRIPTION PART NO. DESCRIPTION

66321LM-16 Chevy 396-454 V8 .300” - Taller retro-fit 73605-16 Chevy 396-454 V8; 1.7 Ratio; 7/16” Stud
190
