KNX BASIC COURSE

                  7.1.1  3-level address structure
                  On the basis of years of experience, the author recommends the following structure for a
                  single building:
                        MaGrp. 0 Central functions
                        MiGrp. 0/0 – 0/7: Function-dependant subdivisions of the central functions
                        MaGrp. 1 – 13: Floor no.
                        MiGrp: 0-7 Functions per floor
                        SGrp: 0-255: Room features per function and floor

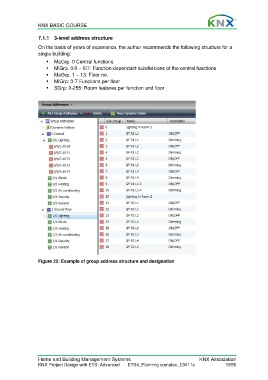

                  Figure 22: Example of group address structure and designation
