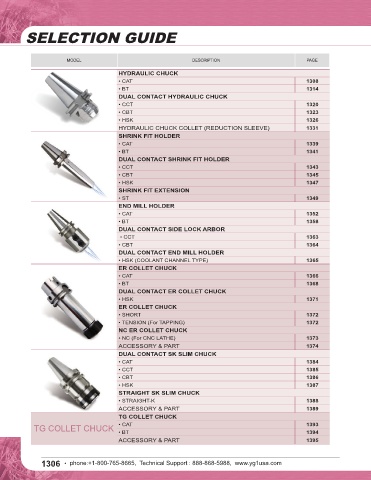

SELECTION GUIDE

MODEL DESCRIPTION PAGE MODEL DESCRIPTION PAGE
HYDRAULIC CHUCK POWER MILLING CHUCK
• CAT 1308 • CAT 1396
• BT 1314 • BT 1396
DUAL CONTACT HYDRAULIC CHUCK DUAL CONTACT HIGH SPEED POWER MILLING CHUCK
• CCT 1320 • CCT 1397
• CBT 1323 • CBT 1398
• HSK 1326 • HSK 1399
HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE) 1331 ACCESSORY & PART 1400
SHRINK FIT HOLDER MORSE TAPER ADAPTER
• CAT 1339 MORSE TAPER
• BT 1341 ADAPTER • CAT 1401
DUAL CONTACT SHRINK FIT HOLDER • BT 1401
• CCT 1343 TAPPING CHUCK
• CBT 1345 • CAT 1402
• HSK 1347 • BT 1403
SHRINK FIT EXTENSION SYNCHRO TAPPING ER CHUCK
• ST 1349 • CAT 1404
END MILL HOLDER ACCESSORY & PART 1405
• CAT 1352 SHELL MILL ARBOR
• BT 1358 • CAT 1406
DUAL CONTACT SIDE LOCK ARBOR • BT 1407
• CCT 1363 DUAL CONTACT SHELL MILL ARBOR
• CBT 1364 • CCT 1408
DUAL CONTACT END MILL HOLDER • CBT 1409
• HSK (COOLANT CHANNEL TYPE) 1365 ACCESSORY & PART 1410
ER COLLET CHUCK NC DRILL CHUCK
• CAT 1366 • CAT 1411
• BT 1368
DUAL CONTACT ER COLLET CHUCK • BT 1412
• HSK 1371 DUAL CONTACT NC DRILL CHUCK
ER COLLET CHUCK • HSK 1413
• SHORT 1372 STRAIGHT NC DRILL CHUCK
• TENSION (For TAPPING) 1372 • STRAIGHT-K 1413
NC ER COLLET CHUCK JACOBS TAPER JACOBS TAPER ARBOR
• NC (For CNC LATHE) 1373 ARBOR • CAT 1414
ACCESSORY & PART 1374 • BT 1414
DUAL CONTACT SK SLIM CHUCK STUB ARBOR
• CAT 1384 STUB ARBOR • CAT 1415
• CCT 1385 • BT 1415
• CBT 1386 SLITTING SAW SLITTING SAW ARBOR
• HSK 1387 • CAT 1417
STRAIGHT SK SLIM CHUCK ARBOR • BT 1417
• STRAIGHT-K 1388 PULL STUD 1418
ACCESSORY & PART 1389 PULL STUD & TOOL
TG COLLET CHUCK CLAMP TOOL CLAMP 1419
COOLANT TUBE
1419
TG COLLET CHUCK • CAT 1393
1394
• BT
ACCESSORY & PART 1395 TECHNICAL INFORMATION 1420

1306 • phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com • 1307
