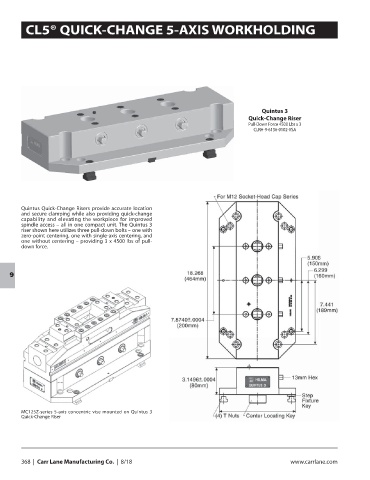

CL5® QUICK-CHANGE 5-AXIS WORKHOLDING
Quintus 3
Quick-Change Riser
Pull-Down Force 4500 Lbs x 3
CLRH-9-6156-0102-VSA
Quintus Quick-Change Risers provide accurate location
and secure clamping while also providing quick-change
capability and elevating the workpiece for improved
spindle access – all in one compact unit. The Quintus 3
riser shown here utilizes three pull-down bolts – one with
zero-point centering, one with single-axis centering, and
one without centering – providing 3 x 4500 lbs of pull-
down force.
9
MC125Z-series 5-axis concentric vise mounted on Quintus 3
Quick-Change Riser
