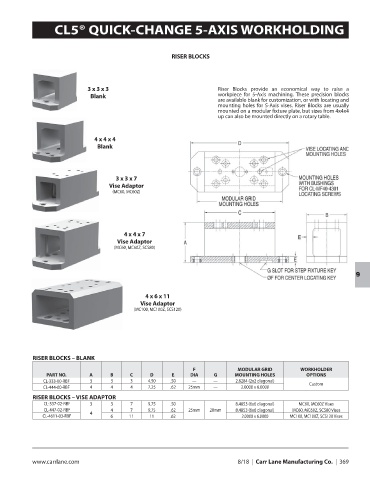

CL5® QUICK-CHANGE 5-AXIS WORKHOLDING

RISER BLOCKS

3 x 3 x 3 Riser Blocks provide an economical way to raise a
Blank workpiece for 5-Axis machining. These precision blocks
are available blank for customization, or with locating and
mounting holes for 5-Axis vises. Riser Blocks are usually
mounted on a modular fixture plate, but sizes from 4x4x4
up can also be mounted directly on a rotary table.

4 x 4 x 4
Blank

3 x 3 x 7
Vise Adaptor
(MC60, MC60Z)

4 x 4 x 7
Vise Adaptor
(MC60, MC60Z, SCS80)

9

4 x 6 x 11
Vise Adaptor
(MC100, MC100Z, SCS120)

RISER BLOCKS – BLANK

F MODULAR GRID WORKHOLDER
PART NO. A B C D E DIA G MOUNTING HOLES OPTIONS
CL-333-00-RBF 3 3 3 4.50 .50 — — 2.8284 (2x2 diagonal) Custom
CL-444-00-RBF 4 4 4 7.25 .62 25mm — 2.0000 x 6.0000
RISER BLOCKS – VISE ADAPTOR
CL-337-02-RBF 3 3 7 9.75 .50 8.4853 (6x6 diagonal) MC60, MC60Z Vises
CL-447-02-RBF 4 7 9.75 .62 25mm 20mm 8.4853 (6x6 diagonal) MC60, MC60Z, SCS80 Vises
4
CL-4611-03-RBF 6 11 11 .62 2.0000 x 6.0000 MC100, MC100Z, SCS120 Vises
