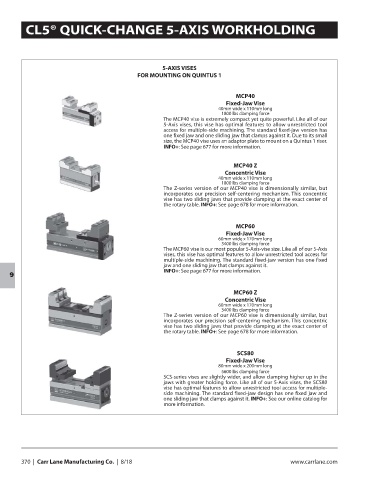

CL5® QUICK-CHANGE 5-AXIS WORKHOLDING

5-AXIS VISES
FOR MOUNTING ON QUINTUS 1

MCP40
Fixed-Jaw Vise
40mm wide x 110mm long
1800 lbs clamping force
The MCP40 vise is extremely compact yet quite powerful. Like all of our
5-Axis vises, this vise has optimal features to allow unrestricted tool
access for multiple-side machining. The standard fixed-jaw version has
one fixed jaw and one sliding jaw that clamps against it. Due to its small
size, the MCP40 vise uses an adaptor plate to mount on a Quintus 1 riser.
INFO+: See page 677 for more information.

MCP40 Z
Concentric Vise
40mm wide x 110mm long
1800 lbs clamping force
The Z-series version of our MCP40 vise is dimensionally similar, but
incorporates our precision self-centering mechanism. This concentric
vise has two sliding jaws that provide clamping at the exact center of
the rotary table. INFO+: See page 678 for more information.

MCP60
Fixed-Jaw Vise
60mm wide x 170mm long
3400 lbs clamping force
The MCP60 vise is our most popular 5-Axis-vise size. Like all of our 5-Axis
vises, this vise has optimal features to allow unrestricted tool access for
multiple-side machining. The standard fixed-jaw version has one fixed
jaw and one sliding jaw that clamps against it.
INFO+: See page 677 for more information.
9

MCP60 Z
Concentric Vise
60mm wide x 170mm long
3400 lbs clamping force
The Z-series version of our MCP60 vise is dimensionally similar, but
incorporates our precision self-centering mechanism. This concentric
vise has two sliding jaws that provide clamping at the exact center of
the rotary table. INFO+: See page 678 for more information.

SCS80
Fixed-Jaw Vise
80mm wide x 200mm long
5600 lbs clamping force
SCS-series vises are slightly wider, and allow clamping higher up in the
jaws with greater holding force. Like all of our 5-Axis vises, the SCS80
vise has optimal features to allow unrestricted tool access for multiple-
side machining. The standard fixed-jaw design has one fixed jaw and
one sliding jaw that clamps against it. INFO+: See our online catalog for
more information.
