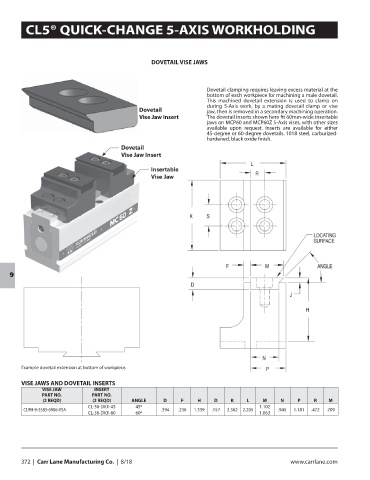

CL5® QUICK-CHANGE 5-AXIS WORKHOLDING

DOVETAIL VISE JAWS

Dovetail clamping requires leaving excess material at the
bottom of each workpiece for machining a male dovetail.
This machined dovetail extension is used to clamp on
during 5-Axis work, by a mating dovetail clamp or vise
Dovetail jaw, then is removed in a secondary machining operation.
Vise Jaw Insert The dovetail inserts shown here fit 60mm-wide insertable
jaws on MCP60 and MCP60Z 5-Axis vises, with other sizes
available upon request. Inserts are available for either
45-degree or 60-degree dovetails. 1018 steel, carburized-
hardened, black oxide finish.

9

Example dovetail extension at bottom of workpiece.

VISE JAWS AND DOVETAIL INSERTS
VISE JAW INSERT
PART NO. PART NO.
(2 REQD) (2 REQD) ANGLE D F H D K L M N P R M
CL-36-DVJI-45 45º 1.102
CLRH-9-3583-6906-VSA .394 .236 1.339 .157 2.362 2.205 .945 1.181 .472 .709
CL-36-DVJI-60 60º 1.063
