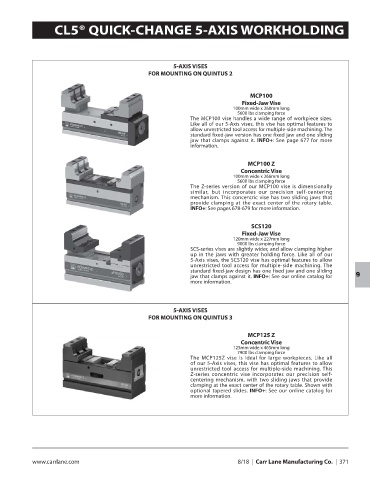

CL5® QUICK-CHANGE 5-AXIS WORKHOLDING

5-AXIS VISES
FOR MOUNTING ON QUINTUS 2

MCP100
Fixed-Jaw Vise
100mm wide x 260mm long
5600 lbs clamping force
The MCP100 vise handles a wide range of workpiece sizes.
Like all of our 5-Axis vises, this vise has optimal features to
allow unrestricted tool access for multiple-side machining. The
standard fixed-jaw version has one fixed jaw and one sliding
jaw that clamps against it. INFO+: See page 677 for more
information.

MCP100 Z
Concentric Vise
100mm wide x 266mm long
5600 lbs clamping force
The Z-series version of our MCP100 vise is dimensionally
similar, but incorporates our precision self-centering
mechanism. This concentric vise has two sliding jaws that
provide clamping at the exact center of the rotary table.
INFO+: See pages 678-679 for more information.

SCS120
Fixed-Jaw Vise
120mm wide x 227mm long
9000 lbs clamping force
SCS-series vises are slightly wider, and allow clamping higher
up in the jaws with greater holding force. Like all of our
5-Axis vises, the SCS120 vise has optimal features to allow
unrestricted tool access for multiple-side machining. The
standard fixed-jaw design has one fixed jaw and one sliding
jaw that clamps against it. INFO+: See our online catalog for 9
more information.

5-AXIS VISES
FOR MOUNTING ON QUINTUS 3

MCP125 Z
Concentric Vise
125mm wide x 465mm long
7900 lbs clamping force
The MCP125Z vise is ideal for large workpieces. Like all
of our 5-Axis vises, this vise has optimal features to allow
unrestricted tool access for multiple-side machining. This
Z-series concentric vise incorporates our precision self-
centering mechanism, with two sliding jaws that provide
clamping at the exact center of the rotary table. Shown with
optional tapered slides. INFO+: See our online catalog for
more information.

www.carrlane.com 8/18 | Carr Lane Manufacturing Co. | 371
