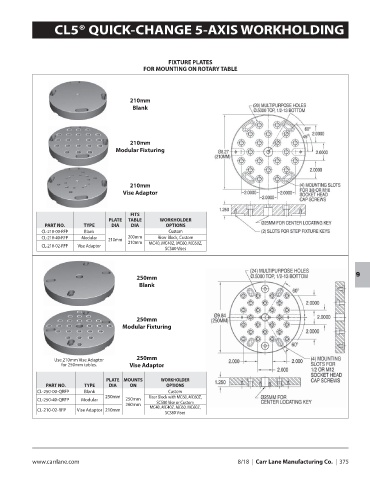

CL5® QUICK-CHANGE 5-AXIS WORKHOLDING

FIXTURE PLATES
FOR MOUNTING ON ROTARY TABLE

210mm
Blank

210mm
Modular Fixturing

210mm
Vise Adaptor

FITS
PLATE TABLE WORKHOLDER
PART NO. TYPE DIA DIA OPTIONS
CL-210-00-RFP Blank Custom
CL-210-40-RFP Modular 210mm 200mm Riser Block, Custom
210mm MC40, MC40Z, MC60, MC60Z,
CL-210-02-RFP Vise Adaptor
SCS80 Vises

250mm 9
Blank

250mm
Modular Fixturing

Use 210mm Vise Adaptor 250mm
for 250mm tables. Vise Adaptor

PLATE MOUNTS WORKHOLDER
PART NO. TYPE DIA ON OPTIONS
CL-250-00-QRFP Blank Custom
250mm Riser Block with MC60, MC60Z,
CL-250-40-QRFP Modular 250mm SCS80 Vise or Custom
260mm MC40, MC40Z, MC60, MC60Z,
CL-210-02-RFP Vise Adaptor 210mm
SCS80 Vises

www.carrlane.com 8/18 | Carr Lane Manufacturing Co. | 375
