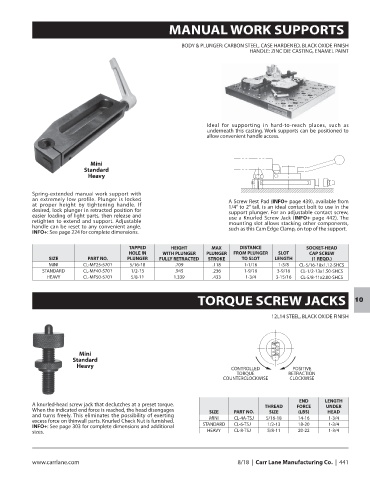

MANUAL WORK SUPPORTS

BODY & PLUNGER: CARBON STEEL, CASE HARDENED, BLACK OXIDE FINISH
HANDLE: ZINC DIE CASTING, ENAMEL PAINT

Ideal for supporting in hard-to-reach places, such as
underneath this casting. Work supports can be positioned to
allow convenient handle access.

Mini
Standard
Heavy

Spring-extended manual work support with
an extremely low profile. Plunger is locked A Screw Rest Pad (INFO+ page 439), available from
at proper height by tightening handle. If 1/4” to 2” tall, is an ideal contact bolt to use in the
desired, lock plunger in retracted position for support plunger. For an adjustable contact screw,
easier loading of light parts, then release and use a Knurled Screw Jack (INFO+ page 442). The
retighten to extend and support. Adjustable mounting slot allows stacking other components,
handle can be reset to any convenient angle. such as this Cam Edge Clamp, on top of the support.
INFO+: See page 224 for complete dimensions.

TAPPED HEIGHT MAX DISTANCE SOCKET-HEAD
HOLE IN WITH PLUNGER PLUNGER FROM PLUNGER SLOT CAP SCREW
SIZE PART NO. PLUNGER FULLY RETRACTED STROKE TO SLOT LENGTH (1 REQD.)
MINI CL-MF25-5701 5/16-18 .709 .118 1-1/16 1-3/8 CL-5/16-18x1.12-SHCS
STANDARD CL-MF40-5701 1/2-13 .945 .236 1-9/16 3-9/16 CL-1/2-13x1.50-SHCS
HEAVY CL-MF50-5701 5/8-11 1.339 .433 1-3/4 3-15/16 CL-5/8-11x2.00-SHCS

TORQUE SCREW JACKS 10

12L14 STEEL, BLACK OXIDE FINISH

Mini
Standard
Heavy
CONTROLLED POSITIVE
TORQUE RETRACTION
COUNTERCLOCKWISE CLOCKWISE

END LENGTH
A knurled-head screw jack that declutches at a preset torque. THREAD FORCE UNDER
When the indicated end force is reached, the head disengages SIZE PART NO. SIZE (LBS) HEAD
and turns freely. This eliminates the possibility of exerting MINI CL-4A-TSJ 5/16-18 14-16 1-3/4
excess force on thinwall parts. Knurled Check Nut is furnished.
INFO+: See page 303 for complete dimensions and additional STANDARD CL-6-TSJA 1/2-13 18-20 1-3/4
sizes. HEAVY CL-8-TSJA 5/8-11 20-22 1-3/4

www.carrlane.com 8/18 | Carr Lane Manufacturing Co. | 441
