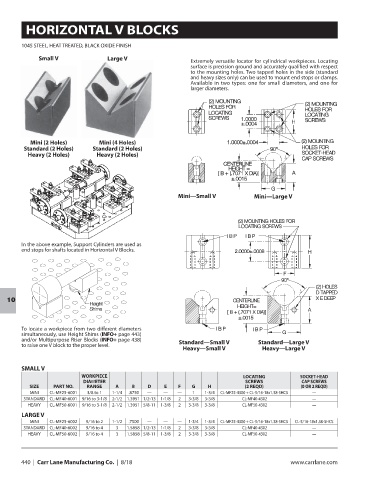

HORIZONTAL V BLOCKS

1045 STEEL, HEAT TREATED, BLACK OXIDE FINISH

Small V Large V Extremely versatile locator for cylindrical workpieces. Locating
surface is precision ground and accurately qualified with respect
to the mounting holes. Two tapped holes in the side (standard
and heavy sizes only) can be used to mount end stops or clamps.
Available in two types: one for small diameters, and one for
larger diameters.

Mini (2 Holes) Mini (4 Holes)
Standard (2 Holes) Standard (2 Holes)
Heavy (2 Holes) Heavy (2 Holes)

Mini—Small V Mini—Large V

In the above example, Support Cylinders are used as
end stops for shafts located in Horizontal V Blocks.

10

To locate a workpiece from two different diameters
simultaneously, use Height Shims (INFO+ page 443)
and/or Multipurpose Riser Blocks (INFO+ page 438)
to raise one V block to the proper level. Standard—Small V Standard—Large V
Heavy—Small V Heavy—Large V

SMALL V
WORKPIECE LOCATING SOCKET-HEAD
DIAMETER SCREWS CAP SCREWS
SIZE PART NO. RANGE A B D E F G H (2 REQD) (0 OR 2 REQD)
MINI CL-MF25-6001 3/8 to 1 1-1/4 .8750 — — — 1 1-3/4 CL-MF25-4300 + CL-5/16-18x1.38-SHCS —
STANDARD CL-MF40-6001 9/16 to 3-1/8 2-1/2 1.3951 1/2-13 1-1/8 2 3-3/8 3-3/8 CL-MF40-4302 —
HEAVY CL-MF50-6001 9/16 to 3-1/8 2-1/2 1.3951 5/8-11 1-3/8 2 3-3/8 3-3/8 CL-MF50-4302 —
LARGE V
MINI CL-MF25-6002 9/16 to 2 1-1/2 .7500 — — — 1-3/4 1-3/4 CL-MF25-4300 + CL-5/16-18x1.38-SHCS CL-5/16-18x1.38-SHCS
STANDARD CL-MF40-6002 9/16 to 4 3 1.5858 1/2-13 1-1/8 2 3-3/8 3-3/8 CL-MF40-4302 —
HEAVY CL-MF50-6002 9/16 to 4 3 1.5858 5/8-11 1-3/8 2 3-3/8 3-3/8 CL-MF50-4302 —

440 | Carr Lane Manufacturing Co. | 8/18 www.carrlane.com
