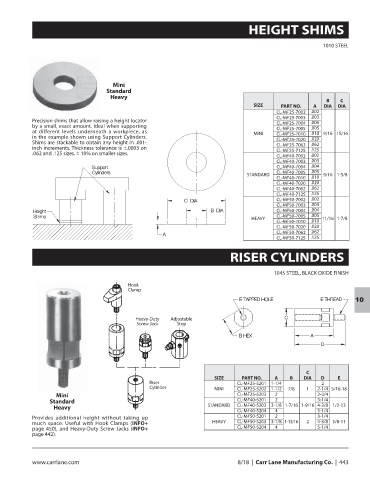

HEIGHT SHIMS

1010 STEEL

Mini
Standard
Heavy
B C
SIZE PART NO. A DIA DIA
CL-MF25-7002 .002
CL-MF25-7003 .003
Precision shims that allow raising a height locator CL-MF25-7004 .004
by a small, exact amount. Ideal when supporting CL-MF25-7005 .005
at different levels underneath a workpiece, as MINI CL-MF25-7010 .010 9/16 15/16
in the example shown using Support Cylinders. CL-MF25-7020 .020
Shims are stackable to obtain any height in .001- CL-MF25-7062 .062
inch increments. Thickness tolerance is + .0003 on CL-MF25-7125 .125
.062 and .125 sizes, + 10% on smaller sizes.
CL-MF40-7002 .002
CL-MF40-7003 .003
CL-MF40-7004 .004
CL-MF40-7005 .005
STANDARD 9/16 1-5/8
CL-MF40-7010 .010
CL-MF40-7020 .020
CL-MF40-7062 .062
CL-MF40-7125 .125
CL-MF50-7002 .002
CL-MF50-7003 .003
CL-MF50-7004 .004
CL-MF50-7005 .005
HEAVY 11/16 1-7/8
CL-MF50-7010 .010
CL-MF50-7020 .020
CL-MF50-7062 .062
CL-MF50-7125 .125

RISER CYLINDERS

1045 STEEL, BLACK OXIDE FINISH
Hook
Clamp

10

Heavy-Duty Adjustable
Screw Jack Stop

C
SIZE PART NO. A B DIA D E
Riser CL-MF25-5201 1-1/4 2
Cylinder MINI CL-MF25-5202 1-1/2 7/8 1 2-1/4 5/16-18
Mini CL-MF25-5203 2 2-3/4
Standard CL-MF40-5201 2 3-1/4
Heavy STANDARD CL-MF40-5203 3-1/8 1-7/16 1-9/16 4-3/8 1/2-13
CL-MF40-5204 4 5-1/4
Provides additional height without taking up CL-MF50-5201 2 3-1/4
much space. Useful with Hook Clamps (INFO+ HEAVY CL-MF50-5203 3-1/8 1-13/16 2 4-3/8 5/8-11
page 450), and Heavy-Duty Screw Jacks (INFO+ CL-MF50-5204 4 5-1/4
page 442).
