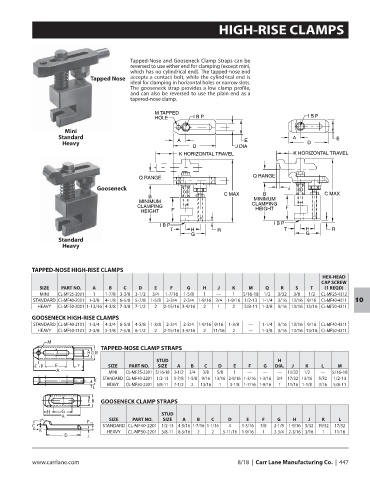

HIGH-RISE CLAMPS

Tapped-Nose and Gooseneck Clamp Straps can be
reversed to use either end for clamping (except mini,
which has no cylindrical end). The tapped-nose end
Tapped Nose accepts a contact bolt, while the cylindrical end is
ideal for clamping in horizontal holes or narrow slots.
The gooseneck strap provides a low clamp profile,
and can also be reversed to use the plain end as a
tapered-nose clamp.

M TAPPED
HOLE I B P I B P
Mini
Standard A E A E
Heavy D
D J DIA
K HORIZONTAL TRAVEL K HORIZONTAL TRAVEL

Q RANGE Q RANGE
Gooseneck J
C MAX B C MAX
B
MINIMUM MINIMUM
CLAMPING CLAMPING F
HEIGHT
HEIGHT F
I B P
I B P
T H R T H R
G G
Standard
Heavy

TAPPED-NOSE HIGH-RISE CLAMPS
HEX-HEAD
CAP SCREW
SIZE PART NO. A B C D E F G H J K M Q R S T (1 REQD)
MINI CL-MF25-2001 1 1-7/8 3-3/8 3-1/2 3/4 1-7/16 1-5/8 1 — 1 5/16-18 1/2 3/32 3/8 1/2 CL-MF25-4312
STANDARD CL-MF40-2001 1-3/8 4-1/8 6-5/8 5-7/8 1-5/8 2-3/4 2-3/4 1-9/16 3/4 1-9/16 1/2-13 1-1/4 3/16 13/16 9/16 CL-MF40-4311 10
HEAVY CL-MF50-2001 1-13/16 4-3/8 7-3/8 7-1/2 2 2-15/16 3-9/16 2 1 2 5/8-11 1-3/8 3/16 13/16 13/16 CL-MF50-4311
GOOSENECK HIGH-RISE CLAMPS
STANDARD CL-MF40-2101 1-3/4 4-3/4 6-5/8 4-5/8 1-3/8 2-3/4 2-3/4 1-9/16 9/16 1-3/8 — 1-1/4 3/16 13/16 9/16 CL-MF40-4311
HEAVY CL-MF50-2101 2-3/8 5-3/8 7-5/8 6-1/2 2 2-15/16 3-9/16 2 11/16 2 — 1-3/8 3/16 13/16 13/16 CL-MF50-4311
M
TAPPED-NOSE CLAMP STRAPS
J H GB
STUD H
C D E F SIZE PART NO. SIZE A B C D E F G DIA. J K L M
A
MINI CL-MF25-2201 5/16-18 3-1/2 3/4 3/8 5/8 1 — — — 11/32 1/2 — 5/16-18
K STANDARD CL-MF40-2201 1/2-13 5-7/8 1-5/8 9/16 13/16 2-9/16 1-3/16 1-3/16 3/4 17/32 13/16 5/32 1/2-13
HEAVY CL-MF50-2201 5/8-11 7-1/2 2 13/16 1 3-1/8 1-7/16 1-9/16 1 11/16 1-1/8 3/16 5/8-11
L
L E B GOOSENECK CLAMP STRAPS
H G STUD
A
2° F SIZE PART NO. SIZE A B C D E F G H J K L
C STANDARD CL-MF40-2201 1/2-13 4-5/16 1-7/16 1-1/16 4 1-3/16 5/8 2-1/8 1-9/16 5/32 19/32 17/32
K HEAVY CL-MF50-2201 5/8-11 6-5/16 2 2 5-11/16 1-9/16 1 2-3/4 2-3/16 3/16 1 11/16
D J

www.carrlane.com 8/18 | Carr Lane Manufacturing Co. | 447
