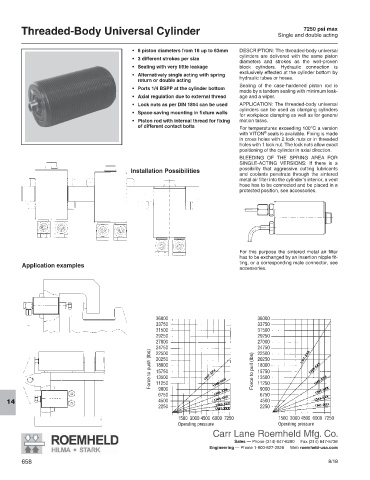

Threaded-Body Universal Cylinder 7250 psi max
Single and double acting

• 6 piston diameters from 16 up to 63mm DESCRIPTION: The threaded-body un i vers al
cylinders are delivered with the same piston
• 3 different strokes per size
diameters and strokes as the well-proven
• Sealing with very little leakage block cylinders. Hydraulic con nection is
exclusively effected at the cylinder bottom by
• Alternatively single acting with spring
return or double acting hydraulic tubes or hoses.
Sealing of the case-hardened piston rod is
• Ports 1/4 BSPP at the cylinder bottom
made by a tandem sealing with minimum leak-
• Axial regulation due to external thread age and a wiper.
• Lock nuts as per DIN 1804 can be used APPLICATION: The threaded-body universal
cylinders can be used as clamping cylinders
• Space-saving mounting in fixture walls
for workpiece clamping as well as for general
• Piston rod with internal thread for fixing motion tasks.
of different contact bolts For temperatures exceeding 100°C a version
®
with VITON seals is available. Fixing is made
in cross holes with 2 lock nuts or in threaded
holes with 1 lock nut. The lock nuts allow exact
positioning of the cylinder in axial direction.
BLEEDING OF THE SPRING AREA FOR
SINGLE-ACTING VERSIONS: If there is a
possibility that aggressive cutting lubricants
Installation Possibilities
and coolants penetrate through the sintered
metal air filter into the cylinder’s interior, a vent
hose has to be connected and be placed in a
protected position, see accessories.

For this purpose the sintered metal air filter
has to be exchanged by an insertion nipple fit-
ting, or a corresponding male connector, see
Application examples
accessories.

36000 36000
33750 33750
31500 31500
29250 29250
27000 27000
24750 24750
Force to push (lbs) 20250 Force to pull (lbs) 20250
22500
22500
18000
18000
15750
15750
13500
13500
11250
9000
9000
6750 11250
6750
4500 4500
14
2250 2250
1500 3000 4500 6000 7250 1500 3000 4800 6000 7250
Operating pressure Operating pressure
