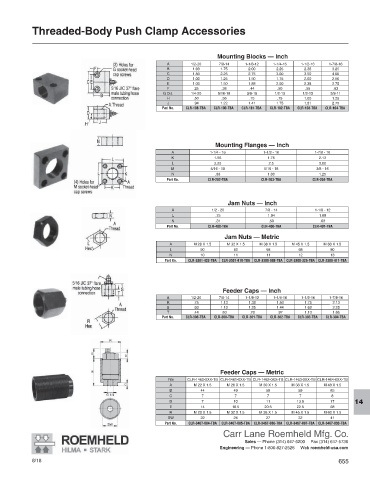

Threaded-Body Push Clamp Accessories

Mounting Blocks — Inch
A 1/2-20 7/8-14 1-1/8-12 1-1/4-16 1-1/2-16 1-7/8-16
B 1.63 1.75 2.00 2.25 2.38 3.25
C 1.50 2.25 2.75 3.00 3.50 4.00
D 1.00 1.25 1.50 1.75 2.00 2.50
E 1.00 1.50 1.88 2.00 2.38 2.75
F .25 .38 .44 .50 .56 .63
G Dia. 1/4-20 5/16-18 3/8-16 1/2-13 1/2-13 5/8-11
H .50 .56 .75 .75 1.00 1.25
J .94 1.22 1.41 1.75 1.81 2.75
Part No. CLR-108-TBA CLR-100-TBA CLR-101-TBA CLR-102-TBA CLR-103-TBA CLR-104-TBA

Mounting Flanges — Inch
A 1-1/4 - 16 1-1/2 - 16 1-7/8 - 16
K 1.56 1.75 2.13
L 2.25 2.5 3.00
M 5/16 - 18 5/16 - 18 3/8 - 16
N .88 1.00 1.25
Part No. CLR-202-TBA CLR-203-TBA CLR-204-TBA

Jam Nuts — Inch
A 1/2 - 20 7/8 - 14 1-1/8 - 12
L .75 1.94 1.69
N .31 .50 .63
Part No. CLR-408-TBA CLR-400-TBA CLR-401-TBA
Jam Nuts — Metric
A M 28 X 1.5 M 32 X 1.5 M 38 X 1.5 M 45 X 1.5 M 60 X 1.5
L 50 62 58 68 90
N 10 11 11 12 13
Part No. CLR-3301-423-TBA CLR-3301-019-TBA CLR-3300-088-TBA CLR-3300-326-TBA CLR-3300-411-TBA

Feeder Caps — Inch
A 1/2-20 7/8-14 1-1/8-12 1-1/4-16 1-1/2-16 1-7/8-16
R .75 1.13 1.38 1.50 1.75 2.13
S .63 1.13 1.25 1.44 1.63 2.25
T .44 .63 .78 .97 1.13 1.66
Part No. CLR-308-TBA CLR-300-TBA CLR-301-TBA CLR-302-TBA CLR-303-TBA CLR-304-TBA

Feeder Caps — Metric
Fits CLR-1460-0XX-TB CLR-1461-0XX-TB CLR-1462-0XX-TB CLR-1463-0XX-TB CLR-1464-0XX-TB
A M 22 X 1.5 M 26 X 1.5 M 30 X 1.5 M 38 X 1.5 M 48 X 1.5
B 44 49 58 59 85
C 7 7 7 7 8
D 7 10 11 13.5 17
14
E 14 16.5 20.5 22.5 28
R M 28 X 1.5 M 32 X 1.5 M 38 X 1.5 M 45 X 1.5 M 60 X 1.5
SW 22 24 27 32 41
Part No. CLR-3467-084-TBA CLR-3467-085-TBA CLR-3467-086-TBA CLR-3467-087-TBA CLR-3467-093-TBA
