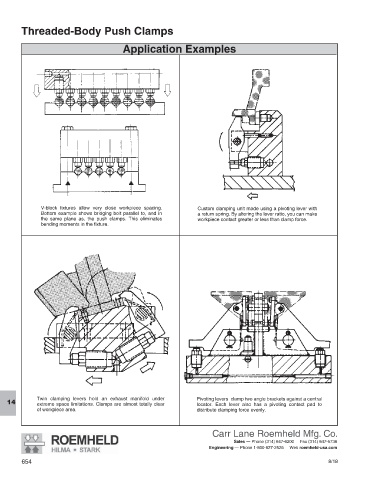

Threaded-Body Push Clamps

Application Examples

V-block fixtures allow very close workpiece spacing. Custom clamping unit made using a pivoting lever with
Bottom example shows bridging bolt parallel to, and in a return spring. By altering the lever ratio, you can make
the same plane as, the push clamps. This eliminates workpiece contact greater or less than clamp force.
bending moments in the fixture.

Twin clamping levers hold an exhaust manifold under Pivoting levers clamp two angle brackets against a central
extreme space limitations. Clamps are almost totally clear locator. Each lever also has a pivoting contact pad to
14
of workpiece area. distribute clamping force evenly.
