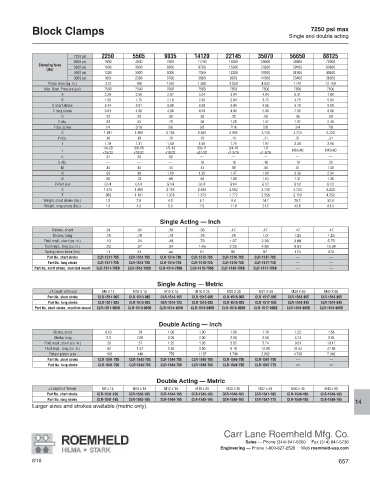

Block Clamps 7250 psi max
Single and double acting

7250 psi 2250 5505 9035 14120 22145 35070 56650 88125
6000 psi 1900 4600 7500 11700 18300 29000 46900 72900
Clamping force 5000 psi 1600 3800 6200 9700 15300 24200 39100 60800
(lbs)
4000 psi 1200 3000 5000 7800 12200 19300 31300 48600
3000 psi 900 2300 3700 5800 9200 14500 23400 36500
Piston Area (sq. in.) .312 .760 1.247 1.950 3.050 4.833 7.791 12.150
Max. Oper. Pressure (psi) 7500 7500 7500 7500 7500 7500 7500 7500
A 2.38 2.56 2.97 3.34 3.94 4.94 6.31 7.88
B 1.38 1.75 2.19 2.50 2.94 3.75 4.75 5.94
C short stroke 2.44 2.81 3.34 3.50 3.94 4.56 5.19 5.69
C long stroke 3.81 4.00 4.34 4.50 4.94 5.88 7.06 8.06
D .22 .28 .38 .38 .38 .56 .56 .59
E dia. .39 .63 .79 .98 1.26 1.57 1.97 2.48
F dia. screw 1/4 5/16 3/8 3/8 7/16 5/8 3/4 7/8
G 1.181 1.969 2.165 2.480 2.992 3.740 4.724 6.220
H dia. .19 .19 .19 .19 .19 .31 .31 .31
I 1.19 1.31 1.50 1.56 1.75 1.97 2.38 2.50
1/4-20 3/8-16 1/2-13 5/8-11 3/4-10 1-8
J M30x40 M42x60
x15/32 x19/32 x19/32 x31/32 x1-3/16 x1-9/16
K .31 .50 .63 — — — — —
L dia. — — — .16 .16 .16 .19 .22
M .44 .44 .44 .44 .50 .66 .81 1.00
N .69 .88 1.09 1.25 1.47 1.88 2.38 2.94
O .66 .72 .88 .94 1.06 1.03 1.31 1.38
P-Port size G1/4 G1/4 G1/4 G1/4 G1/4 G1/2 G1/2 G1/2
S 1.575 1.969 2.165 2.480 2.992 3.740 4.724 6.220
T .866 1.181 1.378 1.575 1.772 2.559 3.150 4.252
Weight, short stroke (lbs.) 1.8 2.6 4.0 5.7 8.4 14.7 28.2 52.8
Weight, long stroke (lbs.) 1.9 4.2 5.9 7.9 11.6 21.5 43.6 81.4

Single Acting — Inch
Stroke, short .31 .31 .38 .38 .47 .47 .47 .47
Stroke, long .78 .78 .78 .78 .78 1.0 1.25 1.25
Fluid reqd., short (cu. in.) .10 .24 .48 .73 1.37 2.26 3.68 5.75
Fluid reqd., long (cu. in.) .23 .57 .94 1.46 2.29 4.83 9.81 15.34
Spring return force (lbs) 11 31 44 61 92 97 170 270
Part No. short stroke CLR-1511-705 CLR-1513-705 CLR-1514-705 CLR-1515-705 CLR-1516-705 CLR-1517-705 — —
Part No. long stroke CLR-1511-725 CLR-1513-725 CLR-1514-725 CLR-1515-725 CLR-1516-725 CLR-1517-735 — —
Part No, short stroke, manifold mount CLR-1511-705B CLR-1513-705B CLR-1514-705B CLR-1515-705B CLR-1516-705B CLR-1517-705B — —

Single Acting — Metric
J X Depth of thread M6 X 12 M10 X 15 M12 X 15 M16 X 25 M20 X 30 M27 X 40 M30 X 40 M42 X 60
Part No. short stroke CLR-1511-005 CLR-1513-005 CLR-1514-105 CLR-1515-005 CLR-1516-005 CLR-1517-005 CLR-1518-005 CLR-1519-005
Part No. long stroke CLR-1511-025 CLR-1513-025 CLR-1514-125 CLR-1515-025 CLR-1516-025 CLR-1517-035 CLR-1518-045 CLR-1519-045
Part No, short stroke, manifold mount CLR-1511-005B CLR-1513-005B CLR-1514-105B CLR-1515-005B CLR-1516-005B CLR-1517-005B CLR-1518-005B CLR-1519-005B

Double Acting — Inch
Stroke, short 0.63 .78 1.00 1.00 1.00 1.19 1.25 1.56
Stroke, long 2.0 2.00 2.00 2.00 2.00 2.50 3.13 3.94
Fluid reqd., short (cu. in.) .20 .57 1.25 1.95 3.05 5.74 9.81 19.17
Fluid reqd., long (cu. in.) .62 1.52 2.50 3.90 6.10 12.08 24.54 47.93
Return piston area .190 .448 .759 1.187 1.796 2.882 4.748 7.342
Part No. short stroke CLR-1541-705 CLR-1543-705 CLR-1544-705 CLR-1545-705 CLR-1546-705 CLR-1547-705 — —
Part No. long stroke CLR-1541-765 CLR-1543-765 CLR-1544-765 CLR-1545-765 CLR-1546-765 CLR-1547-775 — —

Double Acting — Metric
J x Depth of Thread M6 x 12 M10 x 15 M12 x 15 M16 x 25 M20 x 30 M27 x 40 M30 x 40 M42 x 60
Part No. short stroke CLR-1541-105 CLR-1543-105 CLR-1544-105 CLR-1545-105 CLR-1546-105 CLR-1547-105 CLR-1548-105 CLR-1549-105
Part No. long stroke CLR-1541-165 CLR-1543-165 CLR-1544-165 CLR-1545-165 CLR-1546-165 CLR-1547-175 CLR-1548-185 CLR-1549-195
14
Larger sizes and strokes available (metric only).
