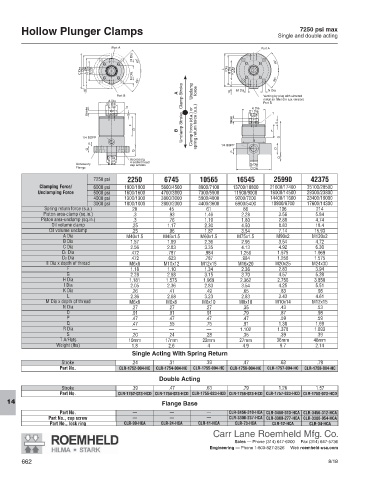

Hollow Plunger Clamps 7250 psi max
Single and double acting

Port A Port A
M Dia 45° 45°

C Dia I Dia L Dia H Dia K Dia L I Dia H Dia K Dia
N Dia
45° 45°
.16 Unclamp force .16 M Dia N Dia
Port B Venting by plug with sintered
A Dia metal air filter (for s.a. version)
D1 Dia T Port B
E Dia
A Dia
Stroke S B A Unclamp Stroke Clamp Stroke D1 Dia T
E Dia
F Clamp force (d.a.) or spring return force (s.a.) Stroke S
G F
1/4 BSPP B G
P 1/4 BSPP
O Q P O
D2 Dia Accessory, Q
R Dia 4 socket head
Accessory B Dia cap screws D2 Dia
Flange C Dia
7250 psi 2250 6745 10565 16545 25990 42375
Clamping Force/ 6000 psi 1900/1900 5600/4500 8800/7100 13700/10800 21600/17400 35100/28500
Unclamping Force 5000 psi 1600/1600 4700/3800 7300/5900 11500/9000 18000/14500 29300/23800
4000 psi 1300/1300 3800/3000 5900/4800 9200/7200 14400/11600 23400/19000
3000 psi 1000/1000 2800/2300 4400/3600 6900/5400 10800/8700 17600/14300
Spring return force (s.a.) 20 45 61 86 106 214
Piston area-clamp (sq.in.) .3 .93 1.46 2.28 3.56 5.84
Piston area-unclamp (sq.in.) .3 .76 1.19 1.80 2.88 4.74
Oil volume clamp .25 1.17 2.30 4.50 8.83 18.4
Oil volume unclamp .25 .96 1.87 3.54 7.14 15.93
A Dia M40x1.5 M48x1.5 M60x1.5 M75x1.5 M90x2 M120x2
B Dia 1.57 1.89 2.36 2.95 3.54 4.72
C Dia 2.56 2.83 3.35 4.13 4.92 6.30
D1 Dia .472 .787 .984 1.256 1.575 1.969
D2 Dia .472 .623 .787 .984 1.256 1.575
E Dia x depth of thread M6x8 M10x12 M12x15 M16x20 M20x25 M24x30
F 1.18 1.10 1.34 2.36 2.83 3.94
G 2.28 2.68 3.15 3.70 4.57 5.39
H Dia 1.181 1.575 1.969 2.362 2.756 3.858
I Dia 2.05 2.36 2.83 3.54 4.25 5.51
K Dia .26 .41 .49 .65 .83 .98
L 2.36 2.68 3.23 2.83 3.43 4.61
M Dia x depth of thread M6x8 M6x8 M6x10 M8x10 M10x14 M12x15
N Dia .27 .27 .27 .35 .43 .53
O .91 .91 .91 .79 .87 .98
P .47 .47 .47 .47 .59 .59
Q .47 .55 .75 .91 1.38 1.69
R Dia — — — 1.102 1.378 1.693
S .20 .24 .28 .35 .39 .39
T A/Flats 10mm 17mm 22mm 27mm 36mm 46mm
Weight (lbs) 1.8 2.6 4 4.9 9.7 2.14
Single Acting With Spring Return
Stroke .24 .31 .39 .47 .63 .79
Part No. CLR-1752-004-HC CLR-1754-004-HC CLR-1755-004-HC CLR-1756-004-HC CLR-1757-004-HC CLR-1758-004-HC

Double Acting
Stroke .39 .47 .63 .79 1.26 1.57
Part No. CLR-1752-023-HCD CLR-1754-023-HCD CLR-1755-023-HCD CLR-1756-023-HCD CLR-1757-023-HCD CLR-1758-023-HCD
14 Flange Base
Part No. — — — CLR-3456-310-HCA CLR-3456-313-HCA CLR-3456-312-HCA
Part No., cap screw — — — CLR-3300-237-HCA CLR-3300-277-HCA CLR-3300-054-HCA
Part No., lock ring CLR-99-HCA CLR-24-HCA CLR-11-HCA CLR-73-HCA CLR-12-HCA CLR-34-HCA
