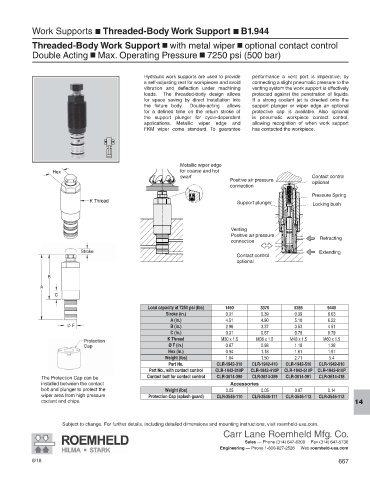

Work Supports J Threaded-Body Work Support J B1.944

Threaded-Body Work Support with metal wiper optional contact control
J
J
Double Acting Max. Operating Pressure 7250 psi (500 bar)
J
J
Hydraulic work supports are used to provide performance a vent port is imperative; by
a self-adjusting rest for workpieces and avoid connecting a slight pneumatic pressure to the
vibration and deflection under machining venting system the work support is effectively
loads. The threaded-body design allows protected against the penetration of liquids.
for space saving by direct installation into If a strong coolant jet is directed onto the
the fixture body. Double-acting allows support plunger or wiper edge an optional
for a defined time on the return stroke of protective cap is available. Also optional
the support plunger for cycle-dependent is pneumatic workpiece contact control,
applications. Metallic wiper edge and allowing recognition of when work support
FKM wiper come standard. To guarantee has contacted the workpiece.

Metallic wiper edge
for coarse and hot

swarf Contact control
Positive air pressure optional
connection
Pressure Spring
Support plunger Locking bush

Venting
Positive air pressure Retracting
connection

Extending
Contact control
optional

Load capacity at 7250 psi (lbs) 1460 3370 5285 9440
Stroke (in.) 0.31 0.39 0.39 0.63
A (in.) 4.51 4.90 5.18 6.22
B (in.) 2.96 3.37 3.53 4.51
C (in.) 0.31 0.67 0.79 0.79
K Thread M30 x 1.5 M36 x 1.5 M48 x 1.5 M60 x 1.5
Ø F (in.) 0.87 0.98 1.18 1.38
Hex (in.) 0.94 1.18 1.61 1.97
Weight (lbs) 1.04 1.50 2.71 5.4
Part No. CLR-1942-310 CLR-1942-410 CLR-1942-510 CLR-1942-610
Part No., with contact control CLR-1942-310P CLR-1942-410P CLR-1942-510P CLR-1942-610P
The Protection Cap can be Contact bolt for contact control CLR-3614-390 CLR-3614-389 CLR-3614-391 CLR-3614-418
installed between the contact Accessories
bolt and plunger to protect the Weight (lbs) 0.05 0.05 0.07 0.14
wiper area from high pressure Protection Cap (splash guard) CLR-3546-110 CLR-3546-111 CLR-3546-112 CLR-3546-113
coolant and chips.
14

Subject to change. For further details, including detailed dimensions and mounting instructions, visit roemheld-usa.com.
