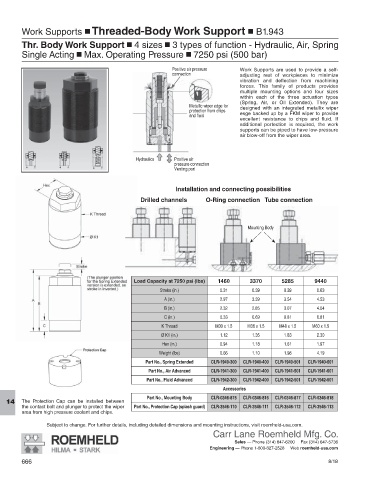

Work Supports Threaded-Body Work Support B1.943
J
J
Thr. Body Work Support 4 sizes 3 types of function - Hydraulic, Air, Spring
J
J
Single Acting Max. Operating Pressure 7250 psi (500 bar)
J
J
Positive air pressure Work Supports are used to provide a self-
connection adjusting rest of workpieces to minimize
vibration and deflection from machining
forces. This family of products provides
multiple mounting options and four sizes
within each of the three actuation types
(Spring, Air, or Oil Extended). They are
Metallic wiper edge for designed with an integrated metallix wiper
protection from chips esge backed up by a FKM wiper to provide
and fluid
excellent resistance to chips and fluid. If
additional portection is required, the work
supports can be piped to have low-pressure
air blow-off from the wiper area.

Hydraulics Positive air
pressure connection
Venting port

Installation and connecting possibilities

Drilled channels O-Ring connection Tube connection

Mounting Body

Load Capacity at 7250 psi (lbs) 1460 3370 5285 9440
Stroke (in.) 0.31 0.39 0.39 0.63
A (in.) 2.97 3.39 3.54 4.53
B (in.) 2.32 2.85 3.07 4.04
C (in.) 0.33 0.69 0.81 0.81
K Thread M30 x 1.5 M36 x 1.5 M48 x 1.5 M60 x 1.5
Ø K1 (in.) 1.12 1.35 1.83 2.30
Hex (in.) 0.94 1.18 1.61 1.97
Weight (lbs) 0.66 1.10 1.98 4.19
Part No., Spring Extended CLR-1940-300 CLR-1940-400 CLR-1940-501 CLR-1940-601
Part No., Air Advanced CLR-1941-300 CLR-1941-400 CLR-1941-501 CLR-1941-601
Part No., Fluid Advanced CLR-1942-300 CLR-1942-400 CLR-1942-501 CLR-1942-601
Accessories
Part No., Mounting Body CLR-0346-815 CLR-0346-816 CLR-0346-817 CLR-0346-818
The Protection Cap can be installed between
14
the contact bolt and plunger to protect the wiper Part No., Protection Cap (splash guard) CLR-3546-110 CLR-3546-111 CLR-3546-112 CLR-3546-113
area from high pressure coolant and chips.
Subject to change. For further details, including detailed dimensions and mounting instructions, visit roemheld-usa.com.
