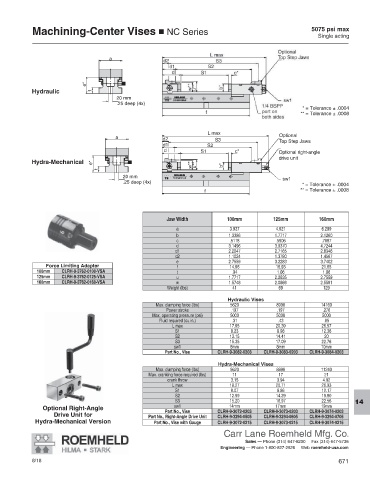

Page 673 - CarrLaneCatalog_2019ed-c.pdf

Machining-Center Vises NC Series 5075 psi max
J
Single acting

a

e*
Hydraulic t
20 mm
.25 deep (4x)
* = Tolerance ± .0004
** = Tolerance ± .0008

a

Hydra-Mechanical e*
t
20 mm
.25 deep (4x)
* = Tolerance ± .0004
** = Tolerance ± .0008

Jaw Width 100mm 125mm 160mm
a 3.937 4.921 6.299
b 1.3386 1.7717 2.1260
c .5118 .5906 .7087
d 3.1496 3.9370 4.7244
d1 2.2047 2.7165 2.8346
d2 1.1024 1.3780 1.4567
e 2.7559 3.2283 3.7402
Force Limiting Adapter f 14.96 16.93 21.65
100mm CLRH-9-3762-0100-VSA t .94 1.06 1.06
125mm CLRH-9-3762-0125-VSA u 1.7717 2.2835 2.7559
160mm CLRH-9-3762-0160-VSA w 1.5748 2.0866 2.5591
Weight (lbs) 41 69 129
Hydraulic Vises
Max. clamping force (lbs) 5620 8990 14160
Power stroke .197 .197 .276
Max. operating pressure (psi) 5000 5000 5000
Fluid required (cu.in.) .31 .43 .85
L max 17.95 20.39 26.57
S1 8.23 8.98 12.36
S2 13.15 14.41 20
S3 15.35 17.09 22.76
sw1 8mm 8mm 10mm
Part No., Vise CLRH-9-3082-0203 CLRH-9-3083-0203 CLRH-9-3084-0203

Hydra-Mechanical Vises
Max. clamping force (lbs) 5620 8990 11240
Max. cranking force required (lbs) 11 17 21
crank throw 3.15 3.94 4.92
L max 18.27 20.71 26.93
S1 8.07 8.86 12.17
S2 12.99 14.29 19.80
S3 15.20 16.97 22.56
14
17mm
19mm
14mm
sw1
Optional Right-Angle Part No., Vise CLRH-9-3072-0203 CLRH-9-3073-0203 CLRH-9-3074-0203
Drive Unit for Part No., Right-Angle Drive Unit CLRH-9-3294-0505 CLRH-9-3294-0605 CLRH-9-3294-0705
Hydra-Mechanical Version Part No., Vise with Gauge CLRH-9-3072-0215 CLRH-9-3073-0215 CLRH-9-3074-0215
