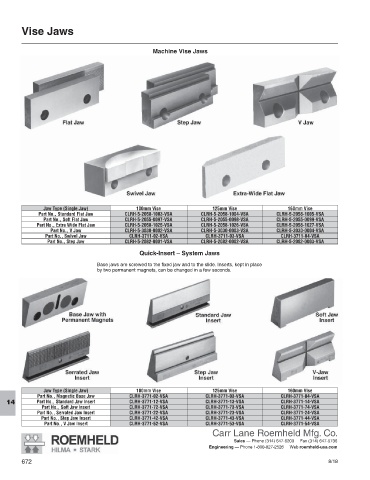

Vise Jaws

Machine Vise Jaws

Jaw Type (Single Jaw) 100mm Vise 125mm Vise 160mm Vise
Part No., Standard Flat Jaw CLRH-5-2058-1003-VSA CLRH-5-2058-1004-VSA CLRH-5-2058-1005-VSA
Part No., Soft Flat Jaw CLRH-5-2055-0097-VSA CLRH-5-2055-0098-VSA CLRH-5-2055-0099-VSA
Part No., Extra Wide Flat Jaw CLRH-5-2058-1025-VSA CLRH-5-2058-1026-VSA CLRH-5-2058-1027-VSA
Part No., V Jaw CLRH-5-3030-0002-VSA CLRH-5-3030-0003-VSA CLRH-5-3030-0004-VSA
Part No., Swivel Jaw CLRH-3711-02-VSA CLRH-3711-03-VSA CLRH-3711-04-VSA
Part No., Step Jaw CLRH-5-2082-0001-VSA CLRH-5-2082-0002-VSA CLRH-5-2082-0003-VSA

Quick-Insert – System Jaws
Base jaws are screwed to the fixed jaw and to the slide. Inserts, kept in place
by two permanent magnets, can be changed in a few seconds.

Jaw Type (Single Jaw) 100mm Vise 125mm Vise 160mm Vise
Part No., Magnetic Base Jaw CLRH-3771-02-VSA CLRH-3771-03-VSA CLRH-3771-04-VSA
Part No., Standard Jaw Insert CLRH-3771-12-VSA CLRH-3771-13-VSA CLRH-3771-14-VSA
14
Part No., Soft Jaw Insert CLRH-3771-72-VSA CLRH-3771-73-VSA CLRH-3771-74-VSA
Part No., Serrated Jaw Insert CLRH-3771-22-VSA CLRH-3771-23-VSA CLRH-3771-24-VSA
Part No., Step Jaw Insert CLRH-3771-42-VSA CLRH-3771-43-VSA CLRH-3771-44-VSA
Part No., V Jaw Insert CLRH-3771-52-VSA CLRH-3771-53-VSA CLRH-3771-54-VSA
