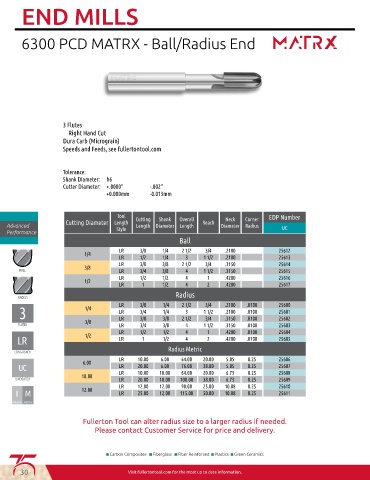

Page 32 - 75th-Online-Anniversary-Catalog

6300 PCD MATRX - Ball/Radius End

3 Flutes
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.000mm -0.013mm

Tool Cutting Shank Overall Neck Corner EDP Number
Cutting Diameter Length Reach
Advanced Style Length Diameter Length Diameter Radius UC
Performance
Ball
LR 3/8 1/4 2 1/2 3/4 .2100 25612
1/4
LR 1/2 1/4 3 1 1/2 .2100 25613
LR 3/8 3/8 2 1/2 3/4 .3150 25614
3/8
LR 3/4 3/8 4 1 1/2 .3150 25615
LR 1/2 1/2 4 1 .4200 25616
1/2
LR 1 1/2 4 2 .4200 25617
Radius
LR 3/8 1/4 2 1/2 3/4 .2100 .0100 25600
1/4
LR 3/4 1/4 3 1 1/2 .2100 .0100 25601
LR 3/8 3/8 2 1/2 3/4 .3150 .0100 25602
3/8
LR 3/4 3/8 4 1 1/2 .3150 .0100 25603
LR 1/2 1/2 4 1 .4200 .0100 25604
1/2
LR 1 1/2 4 2 .4200 .0100 25605
Radius Metric
LR 10.00 6.00 64.00 20.00 5.05 0.25 25606
6.00
LR 20.00 6.00 76.00 38.00 5.05 0.25 25607
LR 10.00 10.00 64.00 20.00 6.73 0.25 25608
10.00
UNCOATED LR 20.00 10.00 100.00 38.00 6.73 0.25 25609
LR 12.00 12.00 90.00 25.00 10.08 0.25 25610
I M 12.00 LR 25.00 12.00 115.00 50.00 10.08 0.25 25611

IMPERIAL METRIC

Fullerton Tool can alter radius size to a larger radius if needed.
Please contact Customer Service for price and delivery.

■ Carbon Composites ■ Fiberglass ■ Fiber Reinforced ■ Plastics ■ Green Ceramics
