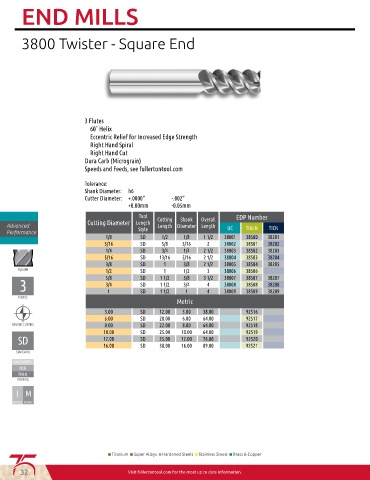

END MILLS

3800 Twister - Square End

3 Flutes
60˚ Helix
Eccentric Relief for Increased Edge Strength
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm
Tool EDP Number
Cutting Diameter Length Cutting Shank Overall
Advanced Length Diameter Length UC TIALN TICN
Performance Style
1/8 SD 1/2 1/8 1 1/2 38001 38500 38201
3/16 SD 5/8 3/16 2 38002 38501 38202
1/4 SD 3/4 1/4 2 1/2 38003 38502 38203
5/16 SD 13/16 5/16 2 1/2 38004 38503 38204
3/8 SD 1 3/8 2 1/2 38005 38504 38205
1/2 SD 1 1/2 3 38006 38506
5/8 SD 1 1/2 5/8 3 1/2 38007 38507 38207
3/4 SD 1 1/2 3/4 4 38008 38508 38208
1 SD 1 1/2 1 4 38009 38509 38209
Metric

3.00 SD 12.00 3.00 38.00 92516
6.00 SD 20.00 6.00 64.00 92517
8.00 SD 22.00 8.00 64.00 92518
10.00 SD 25.00 10.00 64.00 92519
12.00 SD 25.00 12.00 76.00 92520
16.00 SD 38.00 16.00 89.00 92521

UNCOATED
TICN
TIALN

I M

IMPERIAL METRIC

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Brass & Copper
