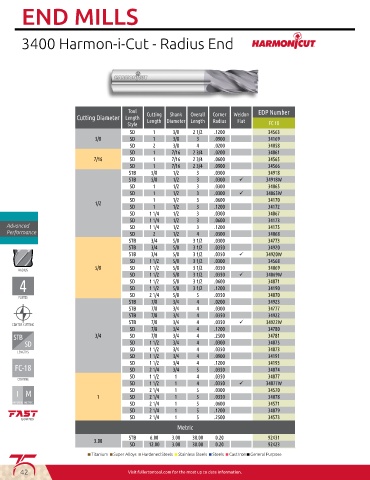

Page 44 - 75th-Online-Anniversary-Catalog

END MILLS

3400 Harmon-i-Cut - Radius End

Tool Cutting Shank Overall Corner Weldon EDP Number
Cutting Diameter Length Length Diameter Length Radius Flat
Style FC 18
SD 1 3/8 2 1/2 .1200 34563
3/8 SD 1 3/8 3 .0900 34169
SD 2 3/8 4 .0200 34058
SD 1 7/16 2 3/4 .0200 34061
7/16 SD 1 7/16 2 3/4 .0600 34565
SD 1 7/16 2 3/4 .0900 34566
STB 5/8 1/2 3 .0300 34918
STB 5/8 1/2 3 .0300 ü 34918W
SD 1 1/2 3 .0300 34065
SD 1 1/2 3 .0300 ü 34065W
SD 1 1/2 3 .0600 34170
1/2
SD 1 1/2 3 .1200 34172
SD 1 1/4 1/2 3 .0300 34067
SD 1 1/4 1/2 3 .0600 34173
Advanced SD 1 1/4 1/2 3 .1200 34175
Performance SD 2 1/2 4 .0300 34068
STB 3/4 5/8 3 1/2 .0300 34773
STB 3/4 5/8 3 1/2 .0350 34920
STB 3/4 5/8 3 1/2 .0350 ü 34920W
SD 1 1/2 5/8 3 1/2 .0300 34568
5/8 SD 1 1/2 5/8 3 1/2 .0350 34069
SD 1 1/2 5/8 3 1/2 .0350 ü 34069W
SD 1 1/2 5/8 3 1/2 .0600 34071
SD 1 1/2 5/8 3 1/2 .1200 34190
SD 2 1/4 5/8 5 .0350 34070
STB 7/8 3/4 4 .0200 34923
STB 7/8 3/4 4 .0300 34777
STB 7/8 3/4 4 .0350 34922
STB 7/8 3/4 4 .0350 ü 34922W
SD 7/8 3/4 4 .1200 34780
3/4 SD 7/8 3/4 4 .2500 34781
SD 1 1/2 3/4 4 .0300 34075
SD 1 1/2 3/4 4 .0350 34073
SD 1 1/2 3/4 4 .0900 34191
SD 1 1/2 3/4 4 .1200 34193
SD 2 1/4 3/4 5 .0350 34074
SD 1 1/2 1 4 .0350 34077
SD 1 1/2 1 4 .0350 ü 34077W
I M 1 SD 2 1/4 1 1 5 5 .0300 34570
2 1/4
SD
.0350
34078
IMPERIAL METRIC SD 2 1/4 1 5 .0600 34571
SD 2 1/4 1 5 .1200 34079
SD 2 1/4 1 5 .2500 34573
Metric
STB 6.00 3.00 38.00 0.20 92431
3.00
SD 12.00 3.00 38.00 0.20 92423
■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ General Purpose
