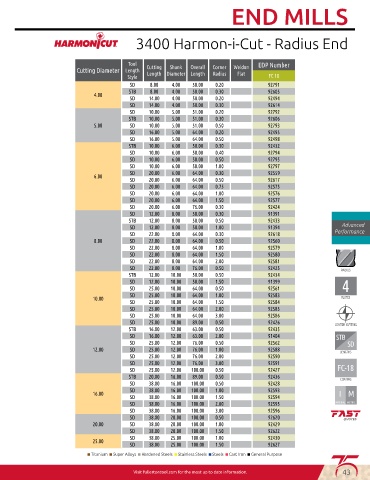

Page 45 - 75th-Online-Anniversary-Catalog

END MILLS

3400 Harmon-i-Cut - Radius End

Tool Cutting Shank Overall Corner Weldon EDP Number
Cutting Diameter Length Length Diameter Length Radius Flat
Style FC 18
SD 8.00 4.00 50.00 0.20 92791
STB 8.00 4.00 50.00 0.30 92605
4.00
SD 14.00 4.00 50.00 0.20 92494
SD 14.00 4.00 50.00 0.30 92614
SD 10.00 5.00 51.00 0.20 92792
STB 10.00 5.00 51.00 0.30 92606
5.00 SD 10.00 5.00 51.00 0.50 92793
SD 16.00 5.00 64.00 0.20 92495
SD 16.00 5.00 64.00 0.50 92498
STB 10.00 6.00 50.00 0.30 92432
SD 10.00 6.00 50.00 0.40 92794
SD 10.00 6.00 50.00 0.50 92795
SD 10.00 6.00 50.00 1.00 92797
SD 20.00 6.00 64.00 0.30 92559
6.00
SD 20.00 6.00 64.00 0.50 92617
SD 20.00 6.00 64.00 0.75 92575
SD 20.00 6.00 64.00 1.00 92576
SD 20.00 6.00 64.00 1.50 92577
SD 20.00 6.00 76.00 0.30 92424
SD 12.00 8.00 50.00 0.30 91391
STB 12.00 8.00 50.00 0.50 92433
SD 12.00 8.00 50.00 1.00 91394 Advanced
SD 22.00 8.00 64.00 0.30 92618 Performance
8.00 SD 22.00 8.00 64.00 0.50 92560
SD 22.00 8.00 64.00 1.00 92579
SD 22.00 8.00 64.00 1.50 92580
SD 22.00 8.00 64.00 2.00 92581
SD 22.00 8.00 76.00 0.50 92425
STB 12.00 10.00 50.00 0.50 92434
SD 12.00 10.00 50.00 1.50 91399
SD 25.00 10.00 64.00 0.50 92561
SD 25.00 10.00 64.00 1.00 92583
10.00
SD 25.00 10.00 64.00 1.50 92584
SD 25.00 10.00 64.00 2.00 92585
SD 25.00 10.00 64.00 3.00 92586
SD 25.00 10.00 89.00 0.50 92426
STB 16.00 12.00 63.00 0.50 92435
SD 16.00 12.00 63.00 2.00 91404
SD 25.00 12.00 76.00 0.50 92562
12.00 SD 25.00 12.00 76.00 1.00 92588
SD 25.00 12.00 76.00 2.00 92590
SD 25.00 12.00 76.00 3.00 92591
SD 25.00 12.00 100.00 0.50 92427
STB 20.00 16.00 89.00 0.50 92436
SD 38.00 16.00 100.00 0.50 92428
SD 38.00 16.00 100.00 1.00 92593
16.00 I M
SD 38.00 16.00 100.00 1.50 92594
SD 38.00 16.00 100.00 2.00 92595 IMPERIAL METRIC
SD 38.00 16.00 100.00 3.00 92596
SD 38.00 20.00 100.00 0.50 92620
20.00 SD 38.00 20.00 100.00 1.00 92429
SD 38.00 20.00 100.00 1.50 92622
SD 38.00 25.00 100.00 1.00 92430
25.00
SD 38.00 25.00 100.00 1.50 92627
■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ General Purpose

Visit fullertontool.com for the most up to date information. 43
