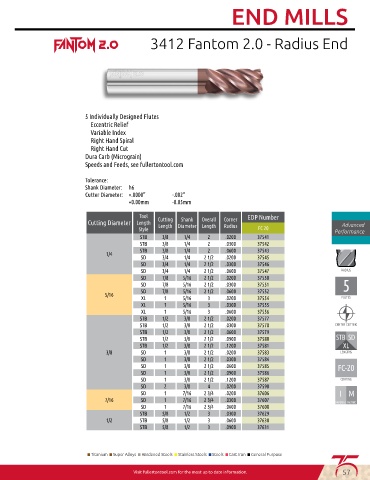

Page 59 - 75th-Online-Anniversary-Catalog

END MILLS

3412 Fantom 2.0 - Radius End

5 Individually Designed Flutes
Eccentric Relief
Variable Index
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall Corner Advanced
Length Diameter Length
Radius
Style FC 20 Performance
STB 3/8 1/4 2 .0200 37541
STB 3/8 1/4 2 .0300 37542
STB 3/8 1/4 2 .0600 37543
1/4
SD 3/4 1/4 2 1/2 .0200 37545
SD 3/4 1/4 2 1/2 .0300 37546
SD 3/4 1/4 2 1/2 .0600 37547
SD 7/8 5/16 2 1/2 .0200 37550
SD 7/8 5/16 2 1/2 .0300 37551
SD 7/8 5/16 2 1/2 .0600 37552
5/16
XL 1 5/16 3 .0200 37554
XL 1 5/16 3 .0300 37555
XL 1 5/16 3 .0600 37556
STB 1/2 3/8 2 1/2 .0200 37577
STB 1/2 3/8 2 1/2 .0300 37578
STB 1/2 3/8 2 1/2 .0600 37579
STB 1/2 3/8 2 1/2 .0900 37580
STB 1/2 3/8 2 1/2 .1200 37581
3/8 SD 1 3/8 2 1/2 .0200 37583
SD 1 3/8 2 1/2 .0300 37584
SD 1 3/8 2 1/2 .0600 37585
SD 1 3/8 2 1/2 .0900 37586
SD 1 3/8 2 1/2 .1200 37587
SD 2 3/8 4 .0200 37590
SD 1 7/16 2 3/4 .0200 37606 I M
7/16 SD 1 7/16 2 3/4 .0300 37607 IMPERIAL METRIC
SD 1 7/16 2 3/4 .0600 37608
STB 5/8 1/2 3 .0300 37629
1/2 STB 5/8 1/2 3 .0600 37630
STB 5/8 1/2 3 .0900 37631

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ General Purpose

Visit fullertontool.com for the most up to date information. 57
