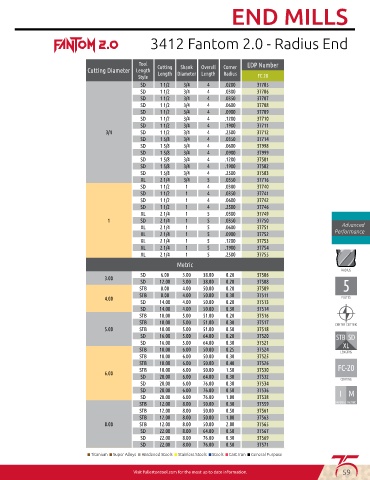

Page 61 - 75th-Online-Anniversary-Catalog

END MILLS

3412 Fantom 2.0 - Radius End

Tool Cutting Shank Overall Corner EDP Number
Cutting Diameter Length Length Diameter Length Radius
Style FC 20
SD 1 1/2 3/4 4 .0200 37705
SD 1 1/2 3/4 4 .0300 37706
SD 1 1/2 3/4 4 .0350 37707
SD 1 1/2 3/4 4 .0600 37708
SD 1 1/2 3/4 4 .0900 37709
SD 1 1/2 3/4 4 .1200 37710
SD 1 1/2 3/4 4 .1900 37711
3/4 SD 1 1/2 3/4 4 .2500 37712
SD 1 5/8 3/4 4 .0350 37714
SD 1 5/8 3/4 4 .0600 37998
SD 1 5/8 3/4 4 .0900 37999
SD 1 5/8 3/4 4 .1200 37501
SD 1 5/8 3/4 4 .1900 37502
SD 1 5/8 3/4 4 .2500 37503
XL 2 1/4 3/4 5 .0350 37716
SD 1 1/2 1 4 .0300 37740
SD 1 1/2 1 4 .0350 37741
SD 1 1/2 1 4 .0600 37742
SD 1 1/2 1 4 .2500 37746
XL 2 1/4 1 5 .0300 37749
1 SD 2 1/4 1 5 .0350 37750
XL 2 1/4 1 5 .0600 37751 Advanced
XL 2 1/4 1 5 .0900 37752 Performance
XL 2 1/4 1 5 .1200 37753
XL 2 1/4 1 5 .1900 37754
XL 2 1/4 1 5 .2500 37755
Metric
SD 6.00 3.00 38.00 0.20 37506
3.00
SD 12.00 3.00 38.00 0.20 37508
STB 8.00 4.00 50.00 0.20 37509
STB 8.00 4.00 50.00 0.30 37511
4.00
SD 14.00 4.00 50.00 0.20 37513
SD 14.00 4.00 50.00 0.30 37514
STB 10.00 5.00 51.00 0.20 37516
STB 10.00 5.00 51.00 0.30 37517
5.00 STB 10.00 5.00 51.00 0.50 37518
SD 16.00 5.00 64.00 0.20 37520
SD 16.00 5.00 64.00 0.30 37521
STB 10.00 6.00 50.00 0.25 37524
STB 10.00 6.00 50.00 0.30 37525
STB 10.00 6.00 50.00 0.40 37526
STB 10.00 6.00 50.00 1.50 37530
6.00
SD 20.00 6.00 64.00 0.30 37532
SD 20.00 6.00 76.00 0.30 37534
SD 20.00 6.00 76.00 0.50 37536 I M
SD 20.00 6.00 76.00 1.00 37538
STB 12.00 8.00 50.00 0.30 37559 IMPERIAL METRIC
STB 12.00 8.00 50.00 0.50 37561
STB 12.00 8.00 50.00 1.00 37563
8.00 STB 12.00 8.00 50.00 2.00 37565
SD 22.00 8.00 64.00 0.50 37567
SD 22.00 8.00 76.00 0.30 37569
SD 22.00 8.00 76.00 0.50 37571
■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ General Purpose

Visit fullertontool.com for the most up to date information. 59
