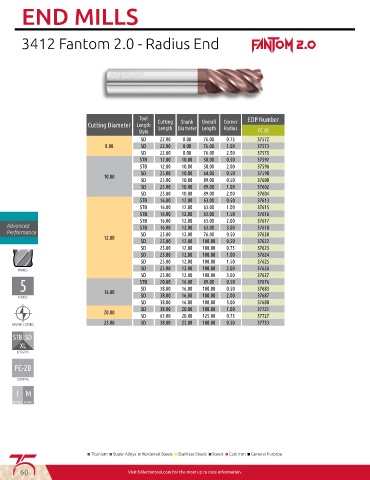

END MILLS

3412 Fantom 2.0 - Radius End

Tool Cutting Shank Overall Corner EDP Number
Cutting Diameter Length Length Diameter Length Radius
Style FC 20
SD 22.00 8.00 76.00 0.75 37572
8.00 SD 22.00 8.00 76.00 1.00 37573
SD 22.00 8.00 76.00 2.00 37575
STB 12.00 10.00 50.00 0.50 37592
STB 12.00 10.00 50.00 2.00 37596
SD 25.00 10.00 64.00 0.50 37598
10.00
SD 25.00 10.00 89.00 0.50 37600
SD 25.00 10.00 89.00 1.00 37602
SD 25.00 10.00 89.00 2.00 37604
STB 16.00 12.00 63.00 0.50 37613
STB 16.00 12.00 63.00 1.00 37615
STB 16.00 12.00 63.00 1.50 37616
STB 16.00 12.00 63.00 2.00 37617
STB 16.00 12.00 63.00 3.00 37618
SD 25.00 12.00 76.00 0.50 37620
12.00
SD 25.00 12.00 100.00 0.50 37622
SD 25.00 12.00 100.00 0.75 37623
SD 25.00 12.00 100.00 1.00 37624
SD 25.00 12.00 100.00 1.50 37625
SD 25.00 12.00 100.00 2.00 37626
SD 25.00 12.00 100.00 3.00 37627
STB 20.00 16.00 89.00 0.50 37676
SD 38.00 16.00 100.00 0.50 37683
16.00
SD 38.00 16.00 100.00 2.00 37687
SD 38.00 16.00 100.00 3.00 37688
SD 38.00 20.00 100.00 1.00 37721
20.00
SD 63.00 20.00 125.00 0.75 37727
25.00 SD 38.00 25.00 100.00 0.50 37733

I M

IMPERIAL METRIC

60 Visit fullertontool.com for the most up to date information.
