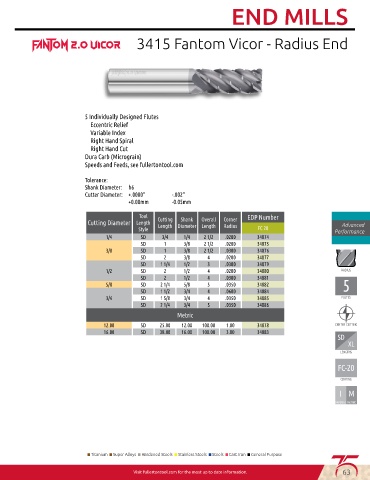

Page 65 - 75th-Online-Anniversary-Catalog

END MILLS

3415 Fantom Vicor - Radius End

5 Individually Designed Flutes
Eccentric Relief
Variable Index
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall Corner
Length Diameter Length
Radius
Style FC 20
1/4 SD 3/4 1/4 2 1/2 .0200 34874
SD 1 3/8 2 1/2 .0200 34875
3/8 SD 1 3/8 2 1/2 .0300 34876
SD 2 3/8 4 .0200 34877
SD 1 1/4 1/2 3 .0300 34879
1/2 SD 2 1/2 4 .0200 34880
SD 2 1/2 4 .0300 34881
5/8 SD 2 1/4 5/8 5 .0350 34882
SD 1 1/2 3/4 4 .0600 34884
3/4 SD 1 5/8 3/4 4 .0350 34885
SD 2 1/4 3/4 5 .0350 34886
Metric
12.00 SD 25.00 12.00 100.00 1.00 34878
16.00 SD 38.00 16.00 100.00 3.00 34883

I M

IMPERIAL METRIC

Visit fullertontool.com for the most up to date information. 63
