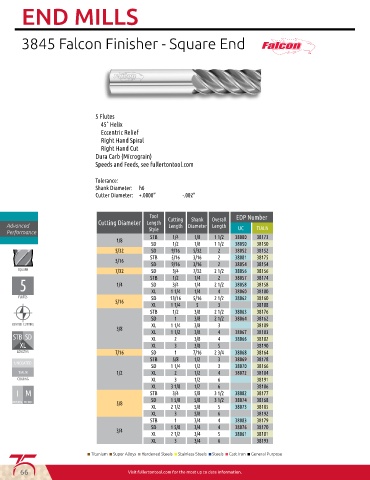

END MILLS

3845 Falcon Finisher - Square End

5 Flutes
45˚ Helix
Eccentric Relief
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall
Advanced Length Diameter Length UC TIALN
Performance Style
1/8 STB 1/4 1/8 1 1/2 38080 38173
SD 1/2 1/8 1 1/2 38050 38150
5/32 SD 9/16 5/32 2 38052 38152
STB 5/16 3/16 2 38081 38175
3/16
SD 9/16 3/16 2 38054 38154
7/32 SD 3/4 7/32 2 1/2 38056 38156
STB 1/2 1/4 2 38057 38174
1/4 SD 3/4 1/4 2 1/2 38058 38158
XL 1 1/4 1/4 4 38060 38180
SD 13/16 5/16 2 1/2 38062 38160
5/16
XL 1 1/4 5 3 38188
STB 1/2 3/8 2 1/2 38063 38176
SD 1 3/8 2 1/2 38064 38162
XL 1 1/4 3/8 3 38189
3/8
XL 1 1/2 3/8 4 38067 38183
XL 2 3/8 4 38066 38182
XL 3 3/8 5 38190
7/16 SD 1 7/16 2 3/4 38068 38164
STB 5/8 1/2 3 38069 38178
UNCOATED
SD 1 1/4 1/2 3 38070 38166
TIALN 1/2 XL 2 1/2 4 38072 38184
XL 3 1/2 6 38191
XL 3 1/8 1/2 6 38186
I M STB 3/4 5/8 3 1/2 38082 38177
SD 1 5/8 5/8 3 1/2 38074 38168
IMPERIAL METRIC 5/8
XL 2 1/2 5/8 5 38073 38185
XL 3 5/8 6 38192
STB 1 3/4 4 38083 38179
SD 1 5/8 3/4 4 38076 38170
3/4
XL 2 1/2 3/4 5 38061 38181
XL 3 3/4 6 38193

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ General Purpose

66 Visit fullertontool.com for the most up to date information.
