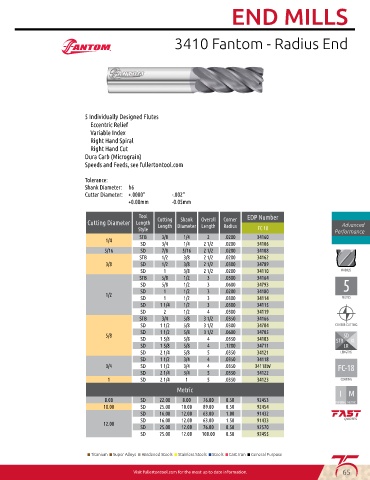

Page 67 - 75th-Online-Anniversary-Catalog

END MILLS

3410 Fantom - Radius End

5 Individually Designed Flutes
Eccentric Relief
Variable Index
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall Corner Advanced
Radius
Length Diameter Length
Style FC 18 Performance
STB 3/8 1/4 2 .0200 34160
1/4
SD 3/4 1/4 2 1/2 .0200 34106
5/16 SD 7/8 5/16 2 1/2 .0200 34108
STB 1/2 3/8 2 1/2 .0200 34162
3/8 SD 1/2 3/8 2 1/2 .0300 34789
SD 1 3/8 2 1/2 .0200 34110
STB 5/8 1/2 3 .0300 34164
SD 5/8 1/2 3 .0600 34793
SD 1 1/2 3 .0200 34180
1/2
SD 1 1/2 3 .0300 34114
SD 1 1/4 1/2 3 .0300 34115
SD 2 1/2 4 .0300 34119
STB 3/4 5/8 3 1/2 .0350 34166
SD 1 1/2 5/8 3 1/2 .0300 34704
SD 1 1/2 5/8 3 1/2 .0600 34705
5/8
SD 1 5/8 5/8 4 .0350 34103
SD 1 5/8 5/8 4 .1200 34711
SD 2 1/4 5/8 5 .0350 34121
SD 1 1/2 3/4 4 .0350 34118
3/4 SD 1 1/2 3/4 4 .0350 34118W
SD 2 1/4 3/4 5 .0350 34122
1 SD 2 1/4 1 5 .0350 34123
Metric I M
8.00 SD 22.00 8.00 76.00 0.50 92453 IMPERIAL METRIC
10.00 SD 25.00 10.00 89.00 0.50 92454
SD 16.00 12.00 63.00 1.00 91432
SD 16.00 12.00 63.00 1.50 91433
12.00
SD 25.00 12.00 76.00 0.50 92570
SD 25.00 12.00 100.00 0.50 92455

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ General Purpose

Visit fullertontool.com for the most up to date information. 65
