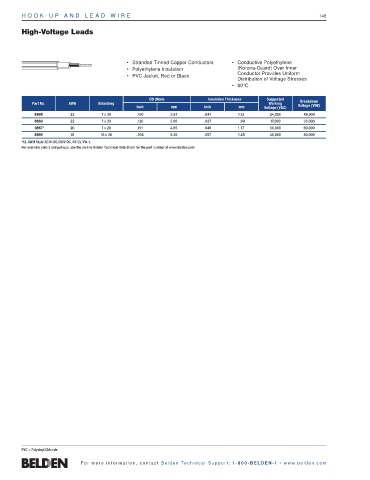

H O O K - U P A N D LE A D WIRE 148

High-Voltage Leads

• Stranded Tinned Copper Conductors • Conductive Polyethylene
• Polyethylene Insulation (Korona-Guard) Over Inner
Conductor Provides Uniform
• PVC Jacket, Red or Black
Distribution of Voltage Stresses
• 80°C
OD (Nom) Insulation Thickness Suggested
Part No. AWG Stranding Working Breakdown
Inch mm Inch mm Voltage (VDC) Voltage (VDC)
8868 22 7 x 30 .150 3.81 .044 1.12 24,000 48,000
8869 22 7 x 30 .120 3.05 .027 .69 17,000 35,000
9867* 20 7 x 28 .191 4.85 .046 1.17 30,000 60,000
8866 18 16 x 30 .208 5.28 .057 1.45 40,000 80,000
*UL AWM Style 3239 (30,000V DC, 80°C), VW-1.
For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com

PVC = Polyvinyl Chloride
