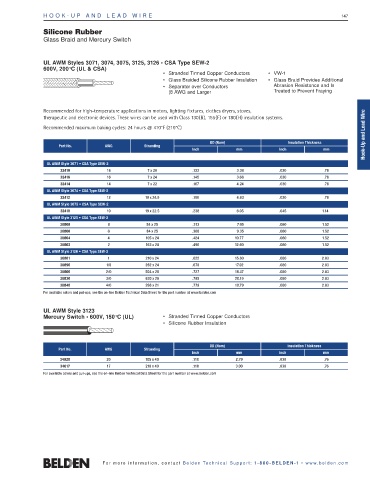

H O O K - U P A N D LE A D WIRE 147
Silicone Rubber
Glass Braid and Mercury Switch
UL AWM Styles 3071, 3074, 3075, 3125, 3126 • CSA Type SEW-2
600V, 200°C (UL & CSA)
• Stranded Tinned Copper Conductors • VW-1
• Glass Braided Silicone Rubber Insulation • Glass Braid Provides Additional
• Separator over Conductors Abrasion Resistance and Is
(8 AWG and Larger Treated to Prevent Fraying
Recommended for high-temperature applications in motors, lighting fixtures, clothes dryers, stoves,
Hook-Up and Lead Wire
therapeutic and electronic devices. These wires can be used with Class 130(B), 155(F) or 180(H) insulation systems.
Recommended maximum baking cycles: 24 hours @ 410°F (210°C)
OD (Nom) Insulation Thickness
Part No. AWG Stranding
Inch mm Inch mm
UL AWM Style 3071 • CSA Type SEW-2
32418 18 7 x 26 .133 3.38 .030 .76
32416 16 7 x 24 .145 3.68 .030 .76
32414 14 7 x 22 .167 4.24 .030 .76
UL AWM Style 3074 • CSA Type SEW-2
32412 12 19 x 24.5 .190 4.83 .030 .76
UL AWM Style 3075 • CSA Type SEW-2
32410 10 19 x 22.5 .238 6.05 .045 1.14
UL AWM Style 3125 • CSA Type SEW-2
30808 8 54 x 25 .313 7.95 .060 1.52
30806 6 84 x 25 .368 9.35 .060 1.52
30804 4 105 x 24 .424 10.77 .060 1.52
30802 2 163 x 24 .496 12.60 .060 1.52
UL AWM Style 3126 • CSA Type SEW-2
30801 1 210 x 24 .622 15.80 .080 2.03
30890 1/0 262 x 24 .670 17.02 .080 2.03
30800 2/0 504 x 26 .727 18.47 .080 2.03
30830 3/0 630 x 26 .795 20.19 .080 2.03
30840 4/0 266 x 21 .779 19.79 .080 2.03
For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com
UL AWM Style 3123
Mercury Switch • 600V, 150°C (UL) • Stranded Tinned Copper Conductors
• Silicone Rubber Insulation
OD (Nom) Insulation Thickness
Part No. AWG Stranding
Inch mm Inch mm
34020 20 105 x 40 .110 2.79 .030 .76
34017 17 210 x 40 .118 3.00 .030 .76
For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com
Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
