P. 151

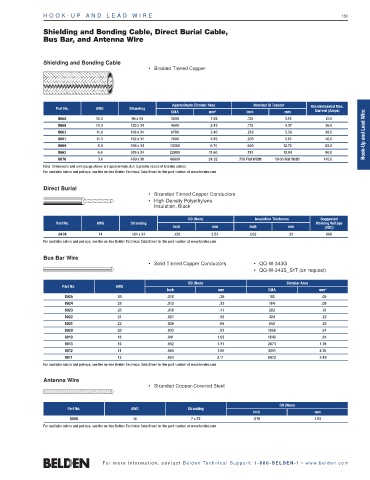

H O O K - U P A N D LE A D  WIRE                                                                   151

               Shielding and Bonding Cable, Direct Burial Cable,
               Bus Bar, and Antenna Wire


               Shielding and Bonding Cable
                                                  •  Braided Tinned Copper





                                                          Approximate Circular Area  Nominal ID Tubular  Recommended Max.
                   Part No.      AWG        Stranding
                                                          CMA         mm 2         Inch        mm        Current (Amps)
                    8660         14.3        96 x 34      3800         1.92        .125        3.18          27.0
                    8668         13.3       120 x 34      4800         2.43        .172        4.37          36.0
                    8663         11.9       168 x 34      6700         3.40        .219        5.56          38.0         Hook-Up and Lead Wire
                    8661         11.3       192 x 34      7600         3.85        .203        5.16          46.0
                    8669         8.9        336 x 34     13300         6.74        .500        12.70         62.0
                    8662         6.6        576 x 34     22900        11.60        .781        19.84         80.0
                    8670         3.4        480 x 30     48000        24.32     .750 Flat Width  19.05 Flat Width  145.0
               Note: Dimensions and wire gauge shown are approximate, due to pliable nature of braided cables.
               For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com

               Direct Burial
                                                  •  Stranded Tinned Copper Conductors
                                                  • High-Density Polyethylene
                                                    Insulation, Black

                                                               OD (Nom)              Insulation Thickness  Suggested
                    Part No.     AWG        Stranding                                                     Working Voltage
                                                          Inch         mm           Inch        mm          (VDC)
                    9438          14         104 x 34     .139         3.53         .032        .81          600
               For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com

               Bus Bar Wire
                                                  •  Solid Tinned Copper Conductors  •  QQ-W-343G
                                                                                     •  QQ-W-343S_S1T (on request)

                                                               OD (Nom)                         Circular Area
                      Part No.         AWG
                                                        Inch             mm               CMA              mm 2
                      8025              30              .010              .26             102              .05
                      8024              28              .013              .33             164              .08
                      8023              26              .016              .41             262              .13
                      8022              24              .021              .52             424              .22
                      8021              22              .026              .65             650              .33
                      8020              20              .033              .83             1056             .54
                       8019             18              .041             1.03             1648             .84
                       8013             16              .052             1.31             2673             1.35
                       8012             14              .065             1.66             4251             2.15
                       8011             12              .083             2.11             6872             3.48
               For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com

               Antenna Wire
                                                  •  Stranded Copper-Covered Steel


                                                                                              OD (Nom)
                       Part No.             AWG                Stranding
                                                                                     Inch                mm
                        8000                 14                 7 x 22               .076                1.93
               For available colors and put-ups, see the on-line Belden Technical Data Sheet for the part number at www.belden.com





                                   Fo r  m o r e  i n fo r m at i o n,  c o n t a c t   Be ld e n  Te ch n i ca l  S u ppo r t :   1- 8 0 0 - B E L D E N -1  •  www. b e l d e n . c o m
