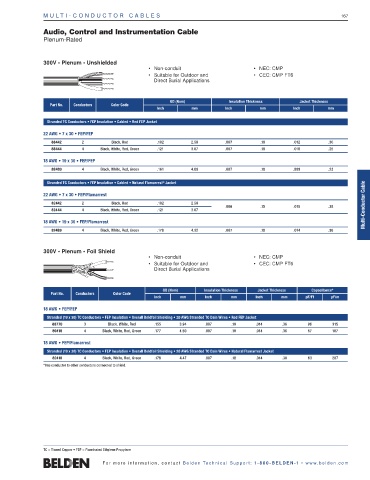

MUL T I - COND UC T O R C A BL E S 167

Audio, Control and Instrumentation Cable
Plenum-Rated

300V • Plenum • Unshielded
• Non-conduit • NEC: CMP
• Suitable for Outdoor and • CEC: CMP FT6
Direct Burial Applications

OD (Nom) Insulation Thickness Jacket Thickness
Part No. Conductors Color Code
Inch mm Inch mm Inch mm
Stranded TC Conductors • FEP Insulation • Cabled • Red FEP Jacket
22 AWG • 7 x 30 • FEP/FEP
88442 2 Black, Red .102 2.59 .007 .18 .012 .30
88444 4 Black, White, Red, Green .121 3.07 .007 .18 .010 .25

18 AWG • 19 x 30 • FEP/FEP
88489 4 Black, White, Red, Green .161 4.09 .007 .18 .009 .23
Multi-Conductor Cable
Stranded TC Conductors • FEP Insulation • Cabled • Natural Flamarrest ® Jacket
22 AWG • 7 x 30 • FEP/Flamarrest
82442 2 Black, Red .102 2.59
.006 .15 .015 .38
82444 4 Black, White, Red, Green .121 3.07
18 AWG • 19 x 30 • FEP/Flamarrest
82489 4 Black, White, Red, Green .170 4.32 .007 .18 .014 .36

300V • Plenum • Foil Shield
• Non-conduit • NEC: CMP
• Suitable for Outdoor and • CEC: CMP FT6
Direct Burial Applications

OD (Nom) Insulation Thickness Jacket Thickness Capacitance*
Part No. Conductors Color Code
Inch mm Inch mm Inch mm pF/Ft pF/m
18 AWG • FEP/FEP
Stranded (19 x 30) TC Conductors • FEP Insulation • Overall Beldfoil Shielding • 20 AWG Stranded TC Dain Wires • Red FEP Jacket
88770 3 Black, White, Red .155 3.94 .007 .18 .014 .36 96 315
89418 4 Black, White, Red, Green .177 4.50 .007 .18 .014 .36 57 187
18 AWG • FEP/Flamarrest
Stranded (19 x 30) TC Conductors • FEP Insulation • Overall Beldfoil Shielding • 20 AWG Stranded TC Dain Wires • Natural Flamarrest Jacket
82418 4 Black, White, Red, Green .176 4.47 .007 .18 .014 .36 63 207
*One conductor to other conductors connected to shield.

TC = Tinned Copper • FEP = Fluorinated Ethylene Propylene
