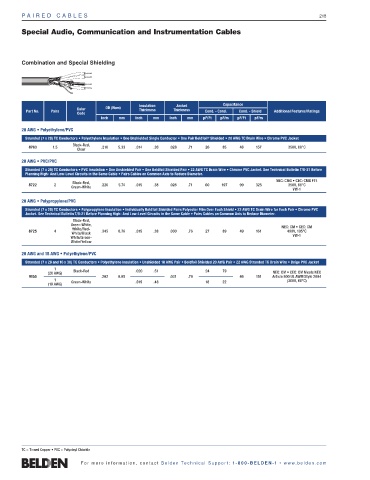

PA I R E D  C A B L E S                                                                            218

        Special Audio, Communication and Instrumentation Cables




        Combination and Special Shielding








                                               Insulation    Jacket        Capacitance
                           Color    OD (Nom)
          Part No.  Pairs                      Thickness  Thickness  Cond. - Cond.  Cond. - Shield  Additional Features/Ratings
                           Code
                                  Inch  mm    Inch  mm   Inch  mm   pF/Ft  pF/m  pF/Ft  pF/m
        20 AWG • Polyethylene/PVC
         Stranded (7 x 28) TC Conductors • Polyethylene Insulation • One Unshielded Single Conductor • One Pair Beldfoil ®  Shielded • 20 AWG TC Drain Wire • Chrome PVC Jacket
                         Black-Red,
           8763   1.5              .210  5.33  .014  .36  .028  .71  26    85   48    157       350V, 80°C
                           Clear
        20 AWG • PVC/PVC
         Stranded (7 x 28) TC Conductors • PVC Insulation • One Unshielded Pair • One Beldfoil Shielded Pair • 22 AWG TC Drain Wire • Chrome PVC Jacket. See Technical Bulletin T/8-21 Before
         Planning High- And Low-Level Circuits in the Same Cable • Pairs Cables on Common Axis to Reduce Diameter.
                                                                                            NEC: CMG • CEC: CMG FT4
                         Black-Red,
           8722    2              .226  5.74  .015  .38  .028  .71   60   197   99    325       350V, 80°C
                         Green-White
                                                                                                  VW-1
        20 AWG • Polypropylene/PVC
         Stranded (7 x 28) TC Conductors • Polypropylene Insulation • Individually Beldfoil Shielded Pairs Polyester Film Over Each Shield • 22 AWG TC Drain Wire for Each Pair • Chrome PVC
         Jacket. See Technical Bulletin T/8-21 Before Planning High- And Low-Level Circuits in the Same Cable • Pairs Cables on Common Axis to Reduce Diameter.
                         Black-Red,
                        Green-White,
                         White/Red-                                                           NEC: CM • CEC: CM
           8725    4              .345  8.76  .015  .38  .030  .76   27    89   49    161       400V, 105°C
                         White/Black
                        White/Green-                                                              VW-1
                        White/Yellow
        20 AWG and 18 AWG • Polyethylene/PVC
         Stranded (7 x 28 and 16 x 30) TC Conductors • Polyethylene Insulation • Unshielded 18 AWG Pair • Beldfoil Shielded 20 AWG Pair • 22 AWG Stranded TC Drain Wire • Beige PVC Jacket
                   1
                 (20 AWG)  Black-Red          .020  .51              24    79              NEC: CM • CEC: CM Meets NEC
           9155                    .262  6.65            .031  .79              46    151  Article 800 UL AWM Style 2094
                   1                                                                            (300V, 60°C)
                 (18 AWG)  Green-White        .019  .48              18    22































        TC = Tinned Copper • PVC = Polyvinyl Chloride
